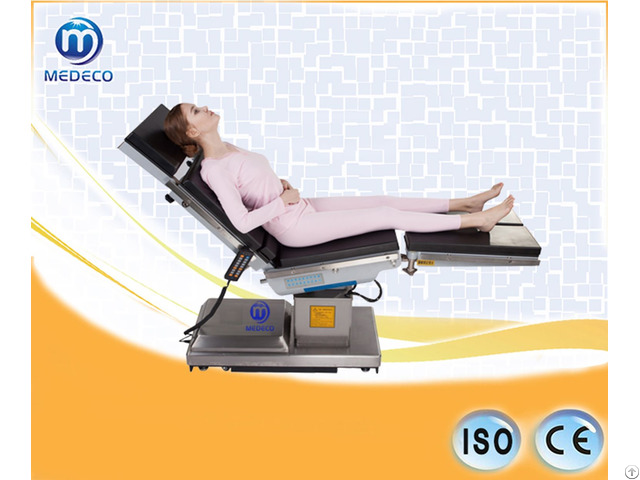

Operating Table Electric Hydraulic Ecoh001 - China

Specifications

Dimension of table top:

Overall Length2100mm

Width500mm Dimension of section:

Head Section…250×500mm

Back Section465×500mm

Kidney Bridge75×500mm

Seat section630×500mm

Leg Section…600×240mm

Table top of from floor

Min Height….

700mm

Max Height1150mm

Adjust….

450mm

Range of movements:

Reversed Trendelenburg…≥30°

Trendelenburg…≥25� �

Lateral Tilt…≥25°

Backward and Forward Movements≥530mm

Adjustment of sections:

Head Section Raised from the horizontal…≥45°

Head Section lowered from the horizonta≥90°

Back Section Raised from the horizontal≥75°

Back Section Lowered from the horizontal≥30°

Leg Section Lowered from the horizontal≥90°

Leg section opened…≥90°

Kidney Bridge Elevated (When optional)≥80mm

Level reset zero (When optional)±2°

Lifting speed4~16mm/s

safe working load…150kg
