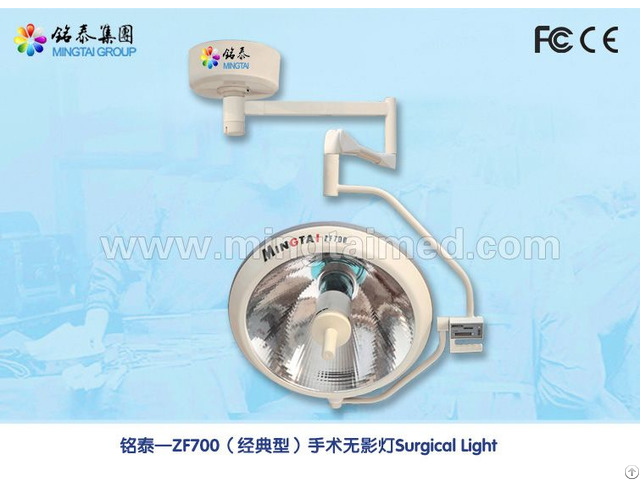

Mingtai Zf700 Halogen Shadowless Lamp - China

Technical parameters: Technical parameters MINGTAI ZF700 Illuminance (lux) 30, 000-165, 000 Color Temperature (Kelvin) 4, 300±50 Lighting Spot Size (mm) 100-360 Illumination depth (mm) ≥1000 Light Note depth (mm) (L1+L2) ≥1500 Radiant power/intensity Ee/Ec(mw/㎡lux) 3.8 Brightness control range 16-steps continuous light adjustment Temp rise (Surgeon head) (℃) ≤2 Main & spare bulb switch automatic switching Power of bulb(V.

HZ) ~220V/50HZ Input power(W) 400 Bulb type halogen Bulb lifetime over 1500h Lowest installation height (mm) 2400

Special advantage 1 - Six joints, 3 of them 720° rotation unlimited, 2 of them 180° rotation 2 - 16-steps continuous light brightness adjustment, with auto memory function 3 - Power system use Taiwan meanwell power system, wide voltage, get UL, Csa, CE, ISO9001 certification 4 - Double control system (optional), Li battery (optional) 5 - Base configuration: Germany imported balance arm system, Germany imported bulb and socket, imported transparent mask glass, imported aluminum reflectors, electrode oxidation process, Taiwan power system Product feature: ZF series surgical light suitable for different surgery lighting, is the ideal light equipment for modern operation room.

1 - Full close streamline light body design completely meets the operation room’s requirement of sterilization and high standard of laminar flow 2 - Overall reflect system is made by CAD/CAM technology, its illumine depth is 1000mm.

3 - Color compensation technology enhance the color recovering 4 - Microcomputer digital control, 16-steps continuous light brightness adjustment, with illuminance memory function and wide voltage operation, electricity AC180V ~ 250V work stable, anti-interference ability 5 - With spare bulb automatically switch function, when the main bulb was burnout, spare bulb will be lighted within 0.1 second.

There's failure indication in the control panel Adopting Germany long life halogen bulb, life can be up to 1500 hours.

6 - There is soft start unit 7 - Adjusting focus system has a delicate structure and easy to change bulb and the ceramic lamp socket without any tools; Detached handle cover can take high temperature (≤ 140 ℃) sterilization treatment 8 - Leggiere balance arm system, six group universal joints move together, moves leggiere, positions stability.

360° universal design can satisfy various height and angle requirement in operation

Company Contact:

• Posted By: Shandong Mingtai Medical Equipment Group Co., LTD

• Phone: +865373281328

• Address: No.8 Yangchun Road,Qufu, Jining , Shandong , China

• Email:

• Business Description: Shandong Mingtai Medical Equipment Group Co., Ltd is established in 2000 year, supporting operating room and ICU medical equipment.

  Since company established, continue to develop, keep making progress, let people enjoy the health future with better quality and service.

  Mingtai products get ISO13485, ISO9001, CE & SFDA certification.

  Mingtai company have many patents.

  Mingtai brand series operating light, operating table, medical pendant, hospital bed and air disinfection equipment meet different distributor and customers different requirement.
