Mingtai Mt2200 Eccentric Column Model Electric Hydraulic Operation Table - China

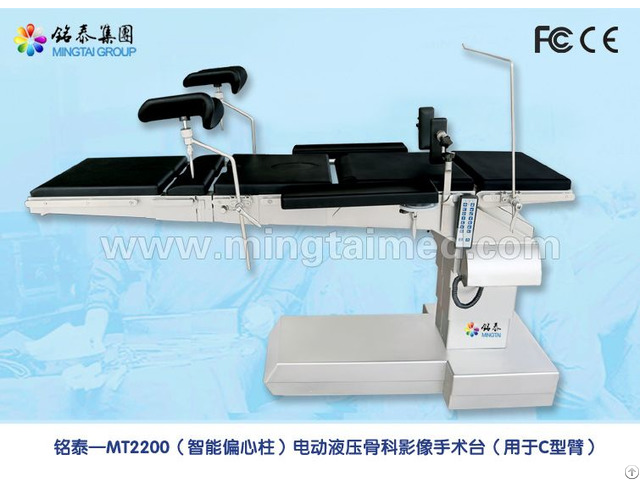

MT2200 Intelligent Eccentric Column Model

Technical Parameter Length 2000±50mm

Width 520±20mm Height (740-1100)±50mm Forward and backward tilt ≥30° Lateral tilt ≥20° Head up/down ≥35° ≥45° Leg down ≥90° Back up ≥75° Back down ≥40° Power AC 220V 50Hz Input power 500VA Main Feature

1 - Electric hydraulic drive system: adopting world famous brand hydraulic pump, solenoid valve, high pressure oil press line, low noise, smooth table when working.

It controls the table broad’s height adjust, forward and backward tilt, lateral tilt and back rest, easy to operate.

Those motion’s speed can be adjusted to make patients feeling comfortable.

Moving Oscillator is better than industrial standard.

Head and leg is manual operation, worked with auxiliary air booster system, easy to operate.

2 - Adopting Germany design, Eccentric-column structure can make the operate table get the widest X-ray perspectivespace on the premise of stable

3 - Five section table design, included angle can be formed between Shoulder and back, back and hip to meet different surgery position considering different patients’ physiological curvature; those included angle is nature and soft, will not pull the incision excessively, it is good for operation and wound healing

4 - Head and leg can be exchanged, meeting different surgery position.

5 - Patent designed 3 section column makes the operating table’s stability and reliability; Patent designed quick plug-in unit convenient doctor exchanging head and leg quickly.

Patent designed clamp type head, safety and stability after locking

6 - Optional the same brand hanging orthopedics tractor

7 - Two independent hydraulic drive system and two independent control systems, make sure that when one of them failed, another can be used

8 - ”T” shaped base design supple excellent shock resistance and stability, easy for clear and disinfection.

Thin design can close C-arm very well, convenient for taking X-ray photo during operation

9 .

Machine design meet the national medical equipment safety standard, equips with different function’s accessories to meet different surgeries’ requirement.

MT2200 Basic Eccentric Column Model Technical Parameter Length 2000mm Width 500mm Height (650-950)mm Forward and backward tilt ≥28° Lateral tilt ≥18° Head up/down ≥90° ≥40° Leg down ≥90° Back up ≥75° Back down ≥40° Flex/chair 240°/120° Power AC 220V 50Hz Input power 500VA Main Feature

1 - Electric hydraulic drive system: adopting world famous brand hydraulic pump, solenoid valve, high pressure oil press line, low noise, working smoothly.

The hydraulic system control the height adjustment, forward/backward tilt, lateral tilt and back rest, easy to operate.

Those motion’s speed can be adjusted making patients feel comfortable.

Horizontal oscillating quantity, vertical oscillating quantity and lateral oscillating quantity of level are better than industrial standard.

Head and leg is manual operation, assist work with air booster system, easy to operate.

2 - Adopting Germany design, eccentric-column structure can make the operate table get the widest X-ray perspective space on the premise of stable 3 - Six section table design, in consideration of patient’s physiological curve, Included angle can be formed between shoulder and back, back and hip to meet different surgery position; Those included angles are nature and soft, will not pull the incision excessively, it is good for operation and wound healing 4 - Head and leg can be exchanged, meeting different surgery position.

5 - Patent designed 3 section column makes the operating table’s stability and reliability; Patent designed quick plug-in unit convenient doctor exchanging head and leg quickly.

Patent designed clamp type head, safety and stability after locking 6 - Optional the same brand hanging orthopedics tractor.

7 - Two sets independent hydraulic drive system and two sets independent microprocessor control system, ensure that when one system failure, another system can be used 8 - ”T” shaped base design supple excellent shock resistance and stability, easy for clear and disinfection.

Thin design can close C-arm very well, convenient for taking X-ray photo during operation 9 - Machine design meet the national medical equipment safety standard, equips with different function’s accessories to meet different surgeries’ requirement.
