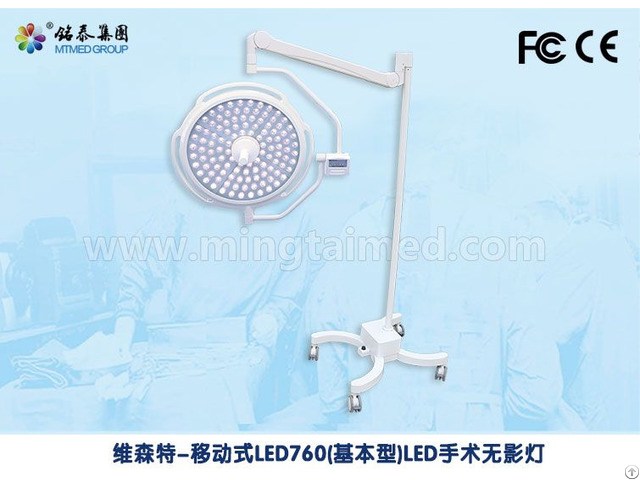

Mingtai Led760 Led560 Basic Model Mobile Operating Light - China

Product feature: 1 - Lamp shell is ABS + aluminum alloy material, streamlined ultra-thin design, the thickness is not more than 15CM, smaller air resistance, curve and smooth surface prevent the deposition of dust, purified air can reach the surgical wound much easily.

2 - Use international advanced warm white LED as shadowless illuminant, environmental, lower energy consumption LED bulb, bulb life: ≥60000 hours

3 - Color temperature adjustment function is standard configuration

4 - The handle on the central of lamp can be detachable, can take high temperature (134°C) sterilization treatment, easily adjust, flexible fixed; there is control panel located in the big and small C arm joint, with brightness tips.

5 - LED do not engender infrared ray and ultraviolet radiation, it doesn’t have the temperature rise and tissue damage caused by halogen shadowless light, can accelerate the wound healing after surgery, and has no radiation pollution.

6 - Microcomputer digital control, illumination can be adjustable; stepless adjustment, eight segments continuous indicating, adjustment range: 10%-100%, backlight illumination: ≥30 Lux; it offers illuminance memory function

7 - Adopt restrain interference design of electromagnetic wave, avoid disturb with the other equipment in operating room

8 - Use satlite oval swing pipe design, can install 4 cantilever devices in complex operating room, also can be reserved per hospital’s request, convenient to upgrade and provide perfect solution for the increasing multi-media request of hospital

9 - Axial rotation device has safety bearing design; every rotating shaft position use new butterfly brake damping device to ensure no drift.

10 - Focusing adjustment system use lightweight central axis spiral structure driving four-point rod to adjust lamp angle, achieving adjust spot size.

11 - Balance arm adopt Mingtai group good quality arm, the relay has three conductive rings, male and female head plug can rotate conductive system infinitely.

Optional Germany Ondal arm module, more than 5 group universal joints, every cantilever must has more than 3 joints which can be rotated in 360°, equipped with fatigue correcting unit and fix position hand handle device, easy to fix position after using for long time

12 - Lamp panel radius of gyration: ≥230cm, the lamp can be pulled to vertical floor, convenient to any angle illumination.

Unify ABS operate handle and mid-operation handle of Lamp rim convenient to operate.

Product execute international IEC standard.

Technical parameters: Technical parameters Mingtai LED760 Mingtai LED560

Illuminance (lux) 160, 000 130, 000

Adjustable Color Temperature (Kelvin) (Optional) 3600-5600 3600-5600

Color Rendering Index (CRI) 96 96

Light brightness control standard standard

Brightness control range 10—100% 10—100% Red Color Index (Ra) 96 96

Temp rise (Surgeon head) (℃) 0.5 0.5 Temp rise (surgical field) (℃) 2 2

Effective focusing depth (cm) 60-150 60-150

Total Irradiance Ee (W/m2) 530 470

Radiant Power Ee/ Ec (mW/m2lux) 3.3 3.3

Lighting spot size (mm) 100-260 100-260

Bulb Type LED LED

Average Bulb Life (hours) ≥60.000 ≥60.000

Bulb Quantity (main bulb+ auxiliary bulb) 112LEDS + 336LEDS 56LEDS + 168LEDS

Depth of illumination L1+L2 (cm) 130 130

Power Consumption (W) 70 50

Height adjustment (cm) 118 118

Power Input 100-240VAC, 50/60Hz 100-240VAC, 50/60Hz
