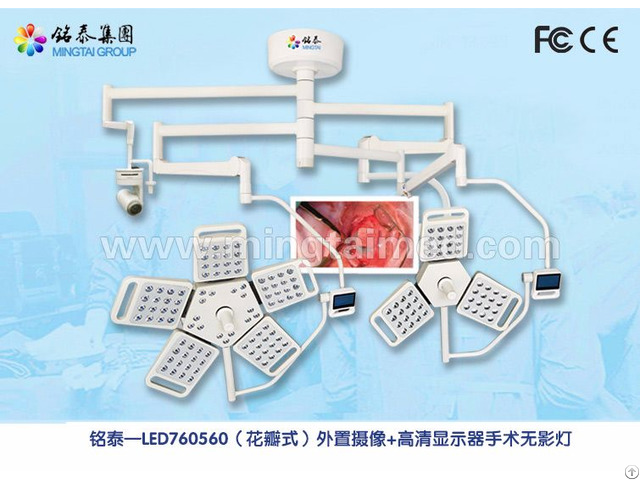

Mingtai Led760 560 External Camera Monitor Operation Light - China

Technical parameters: Technical parameters MINGTAI LED760 MINGTAI LED560 Illuminance (lux) 180, 000 130, 000 Color Temperature (Kelvin) 4, 300 4, 300 Adjustable Color Temperature (Kelvin) (Optional) 3600-5600 3600-5600 Color Rendering Index (CRI) 96 96 Red Color Index (R9) 96 96 Light brightness control standard standard Brightness control range 10—100% 10—100% Temp rise (Surgeon head) (℃) 0.5 0.5 Temp rise (surgical field) (℃) 2 2 Effective Focusing Depth (cm) 60-150 60-150 Total Irradiance Ee (W/m2) 530 470 Radiant Power Ee/ Ec (mW/m2lux) 3.3 3.3 Lighting Spot Size (mm) 100-260 100-260 Bulb Type LED LED Average Bulb Life (hours) 60, 000 60, 000 Bulb Quantity (main bulb+ auxiliary bulb) 128LEDS+384LEDS 56LEDS+168LEDS Depth of illumination L1+L2 (cm) 130 130 Power Consumption (W) 70 50 Height adjustment (cm) 118 118 Power Input 100-240VAC, 50/60Hz 100-240VAC, 50/60Hz Special advantage:

Protected by patent No.

ZL 2013 2 0354946.9, do not infringe! 1 - High strength ABS material, ultra-thin light head, integrated surrounded 4 group handle design, meeting laminar flow requirements, easy to operate

2 - Intelligent spot control technology: Light intensity not change when spot size changed

3 - Intelligent shadow control technology: when light was sheltered by surgeon head, correlated LED light will automatically darken, other LED lights which are not sheltered will increase brightness, compensate the illuminance loss in surgery field, provide a better shadowless rate, bring the perfect surgical lighting (optional)

4 - Variety of Surgical environment lighting mode: bright, normal, endoscopic lighting mode; Base axis has ambient light lighting mode (optional)

5 - Satlite oval hanging main arm, meet laminar flow requirement

6 - Double control system (optional), Li battery (optional), electric focus adjustment system (optional), RGBW color adjustment system (optional), independent R9 function (optional), manual focus adjustment function (standard)

7 - Base configuration: Germany imported balance arm system, light head is designed by Germany engineer, USA LED bulb, Taiwan power system Product feature: 1 - Lamp shell is ABS material, integrated design with four handles around and streamlined ultra-thin design, the thickness is not more than 18CM, obtain excellent effect of laminar flow 2 - Use international advanced warm white LED as shadowless illuminant, environmental, lower energy consumption LED bulb, bulb life: ≥60000 hours 3 - LED do not engender infrared ray and ultraviolet radiation, it doesn’t have the temperature rise and tissue damage caused by halogen shadowless light, can accelerate the wound healing after surgery, and has no Radiation pollution 4 - LED color temperature is constant, soft and not dazzling, close to natural light 5 - The main light use 128LEDS(main bulb)+384LEDS(spare bulb) independent LED illuminant (lamp cup is one main and three spare bulb structure), divided into multiple independent illuminant group, subsidiary light use 56LEDS(main bulb)+168LEDS(spare bulb) LED illuminant (lamp cup is one main and three spare bulb structure), divided into multiple independent illuminant group; every lamp use double CPU control, every group of LED illuminant controlled by special circuit chip, any group failure will not affect the normal use of shadowless light.

6 - Double switch control system, when control panel failure, emergency switch which installed on light head can be used, guarantee light normal work.

Control panel in the spring arm joint, film touch switch, easy to use, Not easy to damage 7 - Microcomputer digital control, illumination can be adjustable; stepless adjustment, eight segments continuous indicating, adjustment range: 10%-100%, backlight illumination: ≥30 Lux; it offers illuminance memory function 8 - Adopt restrain interference design of electromagnetic wave, avoid disturb with the other equipment in operating room 9 - Use satlite oval swing pipe design, can install 4 cantilever devices in complex operating room, also can be reserved per hospital’s request, convenient to upgrade and provide perfect solution for the increasing multi-media request of hospital 10 - Balanced system using imported German Ondal arm module, more than 5 group universal joints, every cantilever must has more than 3 joints which can be rotated in 360°, equipped with fatigue correcting unit and fix position hand handle device, easy to fix position after using for long time

Company Contact:

• Posted By: Shandong Mingtai Medical Equipment Group Co., LTD

• Phone: +865373281328

• Address: No.8 Yangchun Road,Qufu, Jining , Shandong , China

• Email:

• Business Description: Shandong Mingtai Medical Equipment Group Co., Ltd is established in 2000 year, supporting operating room and ICU medical equipment.

  Since company established, continue to develop, keep making progress, let people enjoy the health future with better quality and service.

  Mingtai products get ISO13485, ISO9001, CE & SFDA certification.

  Mingtai company have many patents.

  Mingtai brand series operating light, operating table, medical pendant, hospital bed and air disinfection equipment meet different distributor and customers different requirement.
