Medical Equipment Dental Hospital Devices Tabletop Autoclave Sterilizer Ste 23 D - China

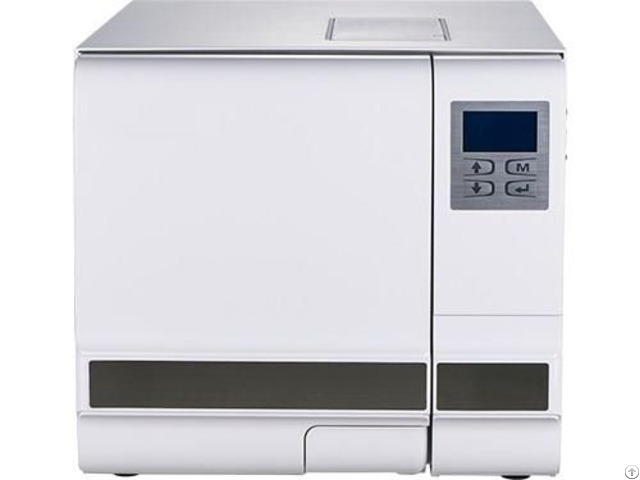

23L Benchtop Autoclave( Class B Veterinarian Autoclave Sterilizers) STE-23-D STE-23-D Overview: 1 - Overview:

23 Liter benchtop autoclaves with class B pre-post vacuum type, complies with the European standard EN13060 - With electronic door locking system.

This 23Liter autoclave are ideal for busy dental, medical, veterinarian, beauty and laboratory purposes.

2 - Excellent Performance:

.

Full automatic table top autoclave with pre set programs.

.

Complies with European standard EN13060.

.

In built independent rapid steam generator ensures quick sterilization cycles.

.

Rapid post sterilization vacuum drying.

.

User friendly interface.

.

LCD screen displaying time, temperature and pressure, process alert and instrument conditions.

.

Choice of language setting including: English, Spanish, German, Polish, French, Hungarian, Romanian, Dutch, Lithuanian, Lavian, Czech, Italian and Chinese.

.

Easily accessible watertank.

3 - Safety and Monitoring :

.

Double door protection system prevents the cycle from starting if the door is not correctly locked.

This system also prevents the door from opening if the pressure inside the chamber is not equal to atmospheric pressure outside the chamber.

.

Pressure safety valve prevents over pressure in the chamber and steam generator.

.

The power is automatically cut if a short circuit or electrical fault occurs.

.

Able to detect and identify the exact cause of any problem, and to issue a specific error code to the operator.

.

Water level main switch in the main tank controlling the min and max water level.

.

Automatic warning for maintenance.

4 - Documentation:

.

Printer (option): an internal printer is optional.

.

USB port (option): it is used for connecting a USB stick, all sterilization data are automatically written in the USB stick, and can be ready directly in any PC and stored electronically.

.

Internal Memory: the last 20 cycles can be automatically stored in the autoclave system, which can be printed out at any time.

1 - Parameter

Chamber Dimension (mm)

Ø247x450

Chamber Volume (Liter)

23

Number of Trays

3

Voltage (V) Freq.

(Hz)

220/110V, 50/60Hz

Power (W)

2200

Overall Dimension (WxHxD, mm)

480x455x700

Autoclave Weight (Kgs)

51 2 - Programmed cycle

Program

TEMP.

(ºC)

Pressure

(Mpa)

Sterilization Time (min)

Total Time (min)

SOLID

134

210

4

15-25 121

110

20

25-40

LIQUID

134

210

10

25-50 121

110

30

30-55

WRAPPED

134

210

10

20-45 121

110

30

30-50

TEXTILE

134

210

10

20-45 121

110

30

30-50

PRION

134

210

18

30-50

DRYING

/

/

/ 1-20

B&D TEST

134

210

3.5

22-35

HELIX TEST

134

210

3.5

22-35

VACUUM TEST

/

/

/

15-20 Remark: The "DRYING" program is option, if choose this program, it will instead of "TEXTILE" program.
