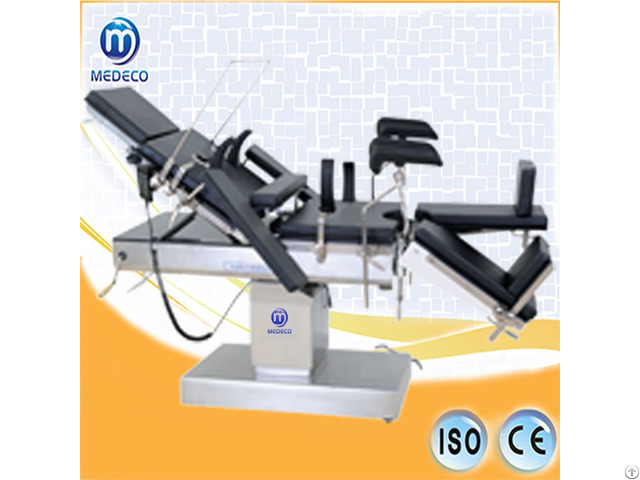

Hospital Equipment Electric Surgical Table Ecoh005 - China

Dimension of table top: Overall Length2100mm

Width500mm

Dimension of section:

Head Section250×500mm

Back Section545×500mm

Seat section…450×500mm

Leg Section600×240mm

Kidney Bridge75×500mm

Foot Section…180×273mm

Table top of from floor

Min Height…750mm

Max Height1000mm

Adujst250mm

Range of movements:

Reversed Trendelenburg≥20°

Trendelenburg≥15°

Lateral Tilt≥15°

Backward and Forward Movements≥400mm

Adjustment of sections:

Head Section Raised from the horizontal.

≥45°

Head Section lowered from the horizontal.

≥90°

Back Section Raised from the horizontal.

≥45°

Kidney Bridge Elevated≥80mm

Leg Section Lowered from the horizontal.

≥90°

Leg section opened…≥90°

safe working load135kg

Lifting speed4~16mm/s Foot and leg board board into a horizontal or vertical.

Device safety sort I B

IPX4 Ingress Protection: IPX4

220V, 50Hz Power: (AC)220V, 50Hz

(DC)24V Internal electric source: (DC)24V

Battery capacity ≥ 2.4AH
