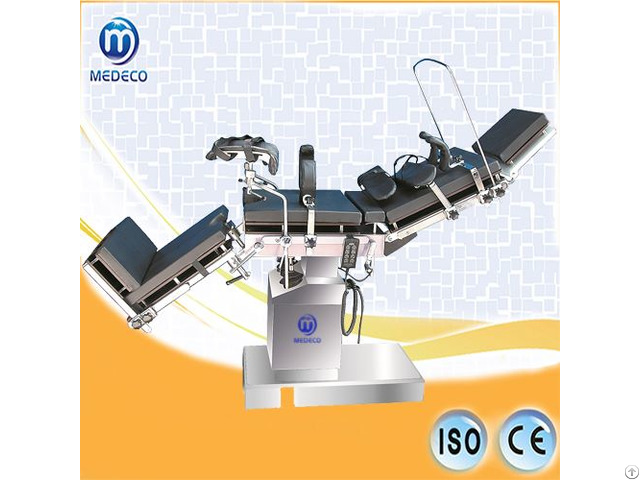

Electric Moterized Medical Operationtable Ecoh007 - China

Dimension of table top:

Overall Length…2100mm

Width…480mm

Dimension of section: Head Section….

280×325mm


Back Section….

500×480mm

Seat section….

530×480mm

Leg Section….

.

510×236mm

Foot Section… .

180×273mm

Kidney Bridge…100×480mm

Table top of from floor:

Max Height1000mm

Min Height750mm

Range of movements:

Reversed Tendelenburg .

≥200

Trendelenburg≥150


Lateral tilt…≥150 Adjustment of sections:

Head Section Raised from the horizontal ≥450

Head Section lowered from the horizontal≥900

Leg Section Lowered from the horizontal…≥900

Leg Section opened….

≥900

Back Section Raised from the horizontal≥450

Back Section lowered from the horizontal≥150

Kidney Bridge Elevated≥100mm

Safe Working Load135kg Lifting speed4~16mm/s

Foot and leg board board into a horizontal or vertical.

IPX4 Ingress Protection: IPX4 Power: AC220V, 50Hz Internal electric source: (DC)24V

Battery capacity ≥ 2.4AH Device safety sort I B
