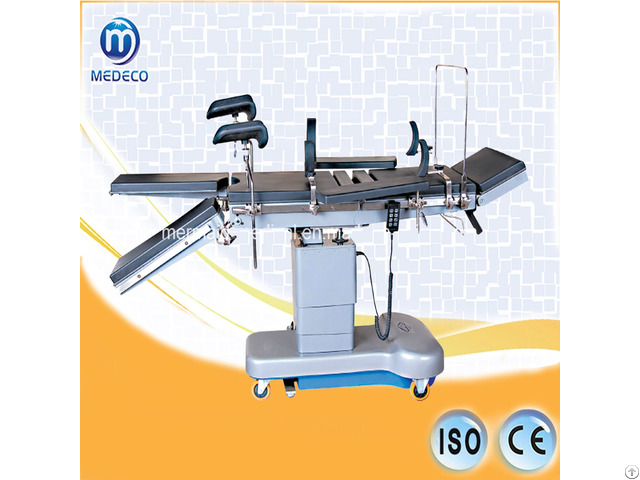

Electric Hydraulic Operation Table Ecoh006 - China

Specifications Dimension of table top:

Overall Length…2100mm

Width…500mm

Dimension of section:

Head Section…250×500mm

Back Section545×500mm

Waist Section75×500mm

Seat section450×500mm

Leg Section….

600×240mm

Table top of from floor

Min Height750mm

Max Height…1000mm

Adujst250mm Range of movements: Reversed Trendelenburg…≥20°

Trendelenburg…≥15� �

Lateral Til≥15°

Backward and Forward Movements≥250mm

Adjustment of sections:

Head Section Raised from the horizontal≥45°

Head Section lowered from the horizonta≥90°

Back Section Raised from the horizontal≥75°

Back Section Raised from the horizontal≥30°

Leg Section Lowered from the horizontal≥90°

Leg section opened≥90°

Kidney Bridge Elevated≥80mm

Lifting speed4~16mm/s

safe working load135kg Device safety sortI B

Ingress Protection: IPX4

Power: (AC)220V, 50Hz

Internal electric source: (DC)24V Battery capacity ≥ 2.4AH
