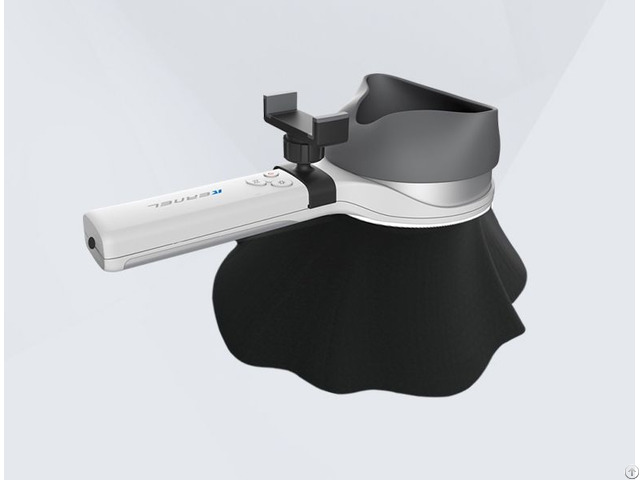

Dermascope Wood S Lamp Diagnosis Of Skin Disorders - China

This Dermascope, emits long-wave UV radiation (UVR), also called black light.

Fluorescence of tissues occurs when Wood’s (UV) light is absorbed and radiation of a longer wavelength, usually visible light, is emitted.

The Wood’s lamp was for the detection of skin disorders based on the fact that some dermatophyte species produce characteristic fluorescence under UV light.

Wood’s lamp is helpful in the diagnosis and treatment of an individual patient as well as for mass screening and control of epidemics.

It can also help to assess the length and response to treatment; Mostly used for Diagnosis of: 1, Superficial Fungal Infections;

2, Bacterial Infections;

3, Pigmentary Disorders： Hypopigmentary and depigmentary dermatoses;

4, Porphyrin is a simple, non-invasive device chiefly used for the diagnosis of infective and pigmentary dermatoses by dermatologists.

However, newer uses, like its application in photodynamic diagnosis of skin cancers, are being continually explored.

Technical Specification: Model No: KN-9000B Brand Name: Kernel

Certification: CE, FDA, ISO, Specification: Inside power DC6~8.4V >0.5A

Power adapter: AC 100-240V 50/60Hz¯2% Output9VDC/3A Battery Specification: 18650 7.4V 2.2Ah Battery standby time: 2.5h Charging period: 6h(electric power up to 85%) Security Classification: typeⅡ, built-in battery Power: 28VA Visual Lens Diameter: Dia 65mm+/-5mm Working Distance: 5cm+/-1cm Light Source: UVA light+White light Output Wavelength: 320nm-400nm (Peak wavelength365nm) Lamp Life: ≥15000h UV radiation intensity: 0.6-2.5mW/cm2 Illuminance: ≥1200Lux Visual lens magnification times : 2times+/-20% Dustproof and waterproof level: IP22 Features: Light Weighted, portable with battery powered;

Easy operation;

With Viewing port and Shielding Cloth enabling to be used in Normal environmental;

Two kinds of lighting, UVA and White light, and also could be used for illuminating for other medical examination;

The viewing port is with magnifying function and opaque of UV light, prevent the harm to eyes.

Three levels of lighting brightness adjustment;

Optional Bracket for Mobile phone for photography.

Company Contact:

• Posted By: Kernel Medical Equipment Co., Ltd.

• Phone: +86-15351630004

• Address: No.2, Dongshan Road, Kernel Building, Economic Development Zone, Xuzhou , jiangsu , China

• Email:

• Business Description: Kernel Medical is the first company in china to get the FDA and CE certificate products.

  Designing /manufacturing/selling of medical devices for more than 20 years; main products are for dermatologic disorders, that is, UV phototherapy device for psoriasis, vitiligo, dermatitis, eczema, and other diseases;

  Second line is the photodynamic products for aesthetics;

  Third is the Hair loss therapy, for alopecia areata, and balding problems;

  The fourth is the gyaenecology products, the digital colposcope and optical products.
