Vt-10c Phoropter - China

GD05008

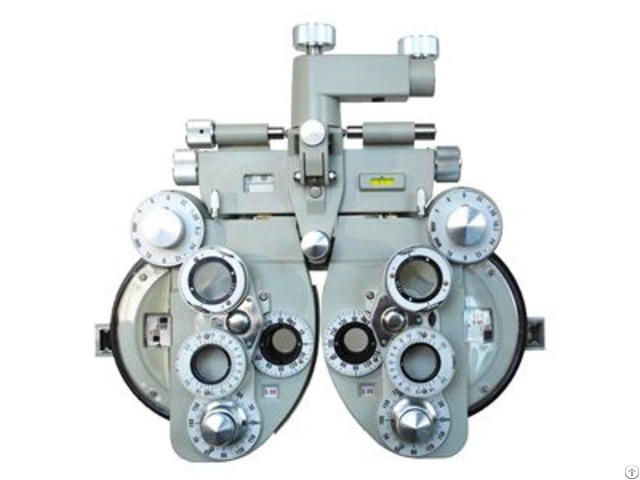

Phoropter

Model No: VT-10C

FEATURES:

1 - Elegant design of butterfly-shape appearance

2 - High grade plated-film used in all optic lenses

3 - This device is applicable to ophthalmology department of hospitals and spectacle stores for precision measurement of visual functions such as myopia, hyperopia, astigmatism, eyesight balance, heterophoria, stereoscopic vision and eyesight amalgamation

4 - Two colors for option

SPECIFICATIONS:

M anual Phoropter

Sphere power Range:

+16.75D to-19.00D, with minimum reading 0.25D or 0.12D

(when+0.12D auxillary lens or optional ±0.12D lens in use)

+26.75D to-29.00D (when optional ±10.00D lens is in use)

Cylinder power range:

0 to-6.00D, with minimum reading 0.25D or 0.12D

(when auxiliary lens is in use)

0 to-8.00D (when-2.00D auxiliary lens is in use)

Astigmatic axis scale: 0 to 180 in 5 steps

Cross cylinder:

±0 - 25D, reversal type (synchronized with astigmatic axis) ±0 - 50D optional

Rotary prism: 0 to 20ΔD in1ΔD step

PD adjustment:

48mm to 80mm in 1mm step (right and left synchronized)

Forehead rest adjustment: 16mm backward and forward

Convergence:

The optical axes of the lenses are aligned at a distance of 400mm from the vertexes of the comeas.

(2mm each for right and left inward) Interpupillary distance enabling convergence=57mm to 80m

Corneal distance device:

2mm forward and 5mm backward from standard plane: with scale

Effective field of view: 19mm

Weight: NW 5kgs ; GW 6kgs

Dimensions: 323mm*315mm*85mm
