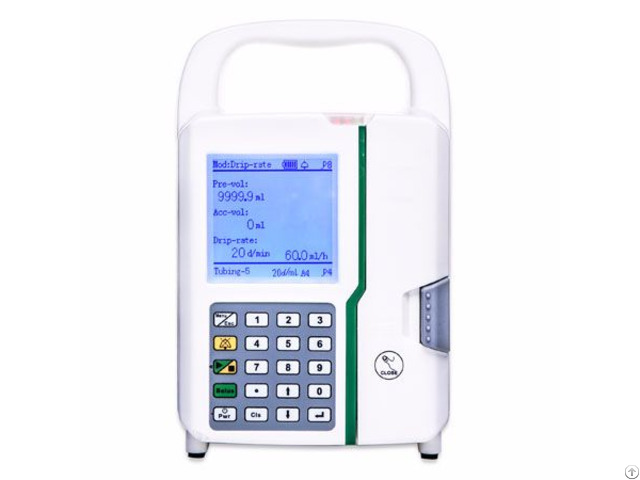

Infusion Pump Eh737 - China

Features:

Semi-squeeze low pulsation uniform drops

Semi-squeeze: can keep the elasticity of the tube and accuracy of infusion in a long period.

Pulsation compensation: uniform drops, low pulsation, safer to patients.

Multi-mode: bring flexible operations.

Original technology: original pressure detection technology, guarantee a more accurate and safer infusion.

Historical records: can keep the latest 1000 records, easy to be browsed, and not- erasable.

Parameters:

4 infusion modes

Flow-rate, Time-amount, Drop-rate, Body-weight

Flow-rate mode

Flow-rate: 1.0～1200.0 ml/h, 0.1ml/h step

Preset volume:

0.1～9999.9ml, 0.1ml step

Cumulant:

0～9999.9ml, reset only

Time-amount mode

Time: 1s~99h59m59s, 1s step

Drop-rate mode

Drop-rate: 1~333 d/min, 1 d/min step

Body-weight mode

Dose: 0.1～999.9 mg, 0.1mg step

mg/kg/h: 0.01～999.99 mg/kg/h, 0.01 mg/kg/h step

Body-weight: 1～300 kg, 1kg step

KVO function

KVO rate: 1.0～5.0 ml/h, 0.1 ml/h step

Bolus function

Bolus rate: 50.0～800.0 ml/h, 0.1 ml/h step

Bolus volume: 0.1～99.9 ml/h, 0.1ml step

Infusion precision

Better than ±5% (using a calibrated or a special infusion set)

Alarm

1, Air in tube, 3 grades of sensitivity; 2, Bubble sensor fault;

3.1, Upper-end occlusion, -20~-60 kPa, 8 grades of sensitivity; 3.2, Upper-end base-pressure fault;

4.1, Lower-end occlusion, 20~140 kPa, 8 grades of sensitivity; 4.2, Lower-end base-pressure fault;

5.1, Pump rotation fault; 5.2, Inverse-infusion;

6, Abnormal door-opening; 7, Low battery power, battery fault;

8, Overtime pause; 9, Completed infusion;

10, AC power fault; 11, MCU fault, and stop infusion

Data function

1, Memory of calibration: Records the calibration data of tube automatically for application;

2, Memory of parameter: Records the latest infusion parameter for next operation;

3, Historical records: records latest 1000 infusion events.

(what/when/why, flow-rate, etc.

)

Safety classification

Class I; Internal power supply, CF type, IPX4 equipment

Power supply

AC 100~240V, 50/60Hz, Built-in Ni-MH rechargeable battery

AC power consumption: ≤20VA

Weight and size

130mm(w)×206mm(h)×11 8mm(t);≤1.6kg
