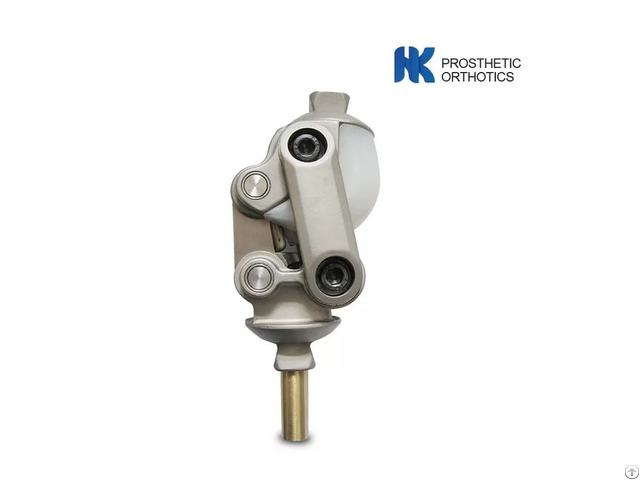

Four Bar Linkage Stainless Steel Prosthetic Knee Joint - China

Prosthetic Knee Joint-Polycentric Four Bar Linkage Prosthetic Knee Joint Stainless Steel 304 Titanium GR5 • Polycentric • With integrated extension assist

• Suitable for max.

S.

S100 kg (220lbs) / Ti 125Kg(275Lbs)body weight

Recommendation:

• For trans-femoral amputees

• With moderate functional levels

• Medium stance phase stability

• Medium swing phase control

• Suitable also for hip disarticulation amputees

• Not suitable for amputees with higher functional levels

Description:

Upper and lower joint section is connected with linkage bars.

The stance phase stability is achieved with the

polycentric kinematic ( Adjustment of the instant center of rotation by adjustment of the stop).

The Stepless

adjustment of the axis friction and of the extension assist spring controls the swing phase.

Technical Data:

• Knee flexion range: approx.

120° • Height (knee center - upper edge): 37 mm Product Number Material Standard Part Weight Weight Limit

CHG—05S Casting S.

Steel — 727g 220lbs

CHG—05T Titanium — 470g 275lbs Four Bar Linkage Stainless Steel Prosthetic Knee Joint, Prosthetic Self Lock Knee Joint 0 Four Bar Linkage Stainless Steel Prosthetic Knee Joint, Prosthetic Self Lock Knee Joint 1

Four Bar Linkage Stainless Steel Prosthetic Knee Joint, Prosthetic Self Lock Knee Joint 2Four Bar Linkage Stainless Steel Prosthetic Knee Joint, Prosthetic Self Lock Knee Joint 3Four Bar Linkage Stainless Steel Prosthetic Knee Joint, Prosthetic Self Lock Knee Joint 4
