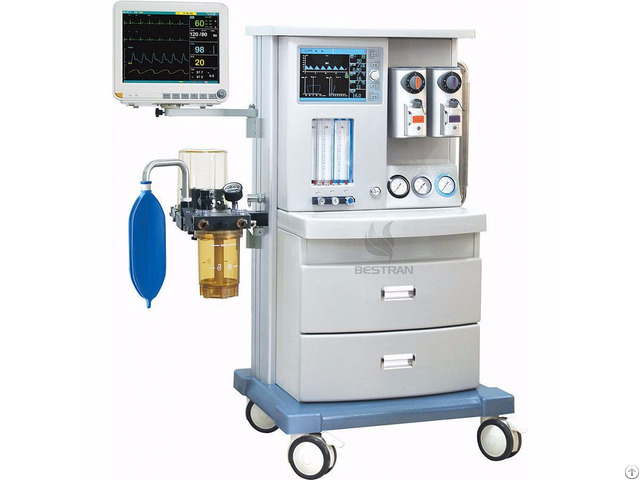

Anesthesia Machine - China

TECHNIQUES SPECIFICATIONS Physical specifications Screen: 10.4 '' LCD Display Screen

Suitable Adult & Child

Mode: pneumatically powered and electrically controlled system

Working Mode: Closed; Semi-Closed; Semi-Open

Circuit Breathing circuit integrated standards

Flowmeters: 5 Tubes Flowmeters: O2: 0.1~10L/Min, N2O: 0.1~10L/Min; Air: 0.1~10L / Min

Trolley: Fitted with 4 nos anti-static rubber castors; two of which are lockable for braking and easy maneuverability with foot operated brake provisions

Drawer unit TWO drawers totally extractable

Technical Specifications: Gas requirement: Medical oxygen and nitrous oxide with a pressure ranging from O2: 0.32~0.6MPa ; NO2: 0.32 MPa to 0.6 MPa.

safety valve <12.5 kPa

Respiratory Rate 1~99bpm

oxygen concentration in the mixed gas N2O/O2 > 21%

Oxygen Flush: 25~75 L/min

modes of ventilation A/C, IPPV, SIPPV, IMV, SIMV, PCV, VCV, PEEP, MANUAL, SIGH

PEEP: 0 ~ 2.0 kPa

Inspiratory trigger pressure -1.0kPa ~ 2.0 kPa

IMV frequency: .

I/E Ratio: 8: 1 ~ 1: 10, Has the inverse ratio ventilation

Tidal Volume 0 ~ 1500 ML

Inspiratory Plateau: 0~1s

O2 Concentration: 21%~100%

Sigh: one deep breath per 70 ~ 120 controlled respirations, the inspiration time is 1.5 times of the setting point

Maximum safety pressure: <= 12.5 kPa

Pressure limit range: 0 ~ 6.0 kPa

Airway pressure alarm: Audible and visual and with yellow and red color indicating Lower: 0.2kPa~5.0kPa; Upper: 0.3~6.0 kPa

±0.2 kPa

Tidal volume alarm: Audible and visual and with yellow and red color indicating upper alarm: 50 to 2000ml, lower alarm: 0~1800ml

Oxygen concentration alarm: Audible and visual and with yellow and red color indicating upper alarm: 21% ~100%; lower alarm: 10%~80%

Power Supply Alarm "Ac/dc power supply are after failing to send out alarm immediately

Alarm Time: keep >120s"

The airway pressure continues to be higher than 15 hPa?±1 hPa for 15s±1s, then the machine will raise an audible alarm, the pressure will be displayed in red and the continuous high pressure red alarm wording is displayed on the screen of the anesthetic respirator.

Operating conditions Ambient temperature: 10 ~ 40oC

Relative humidity: no higher than 80 %

Atmospheric pressure: 860 hPa ~ 1060 hPa

Power requirement: 100-120 Vac, 50/60 Hz; Attention: the AC power supply used for the anesthesia machine must be well grounded.

Attention: the anesthesia machine used must be equipped with a carbon dioxide monitor complying with ISO 9918: 1993, an oxygen monitor complying with ISO 7767: 1997 and an expiratory gas volume monitor complying with 51.101.4.2 of Medical Electrical Equipment Part II: Special Requirements for Safety and Basic Performance of Anesthesia System.

Storage Ambient temperature: -15oC?~ +50oC

Relative humidity: no higher than 95 %

Atmospheric pressure: 86 kPa ~ 106 kPa.

It should be stored in a room without corrosive gas and well ventilated

Package packaging box comply with the requirement of GB/T 15464

Between the packaging box and product, soft material with appropriate thickness provided to prevent loosening and mutual friction during transportation

Moisture protection and rain protection to ensure that product is protected from natural damage.

Safty & Alarm Oxygen Alarm It alarms when the oxygen supply from pipe or cylinders lower than 0.2MPa

Ventilation Volume Alarm Lower: 0~12L/Min; Up: 18L/ Min

Power Alarm It Alrmas while AC and DC supply failure ; Keep alraming time: >120s

Air Tract Pressure Alarm Lower: 0.2kPa ~5.0 kPa; Up: 0.3kPa ~ 6.0kPa
