Widely Used Fence Panel - China

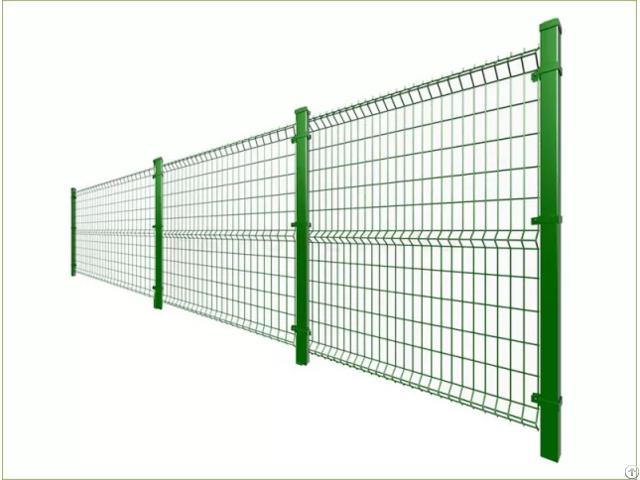

3D Fence Panel

3D Fence Panel, also called 3D security fence, Triangle Bending Welded Mesh Fence, security fencing and wire mesh fence, is made from low carbon steel wire or galvanized wire.

The curve quantity varies according to the fence height.

The 3D Fence Panel system is consisted of wire mesh fence panel and post, and the two parts are connected together with accessories.

Because of its stable, durable and flexible structure, the curved wire mesh fence is widely used in garden, factory, railway, highway or any other place that would not like visitors.

Production process:

· Low carbon steel → Welded → Electrostatic spraying.

· Galvanized wire → Welded → Electrostatic spraying.

· Low carbon steel → Welded → Hot dipped galvanized.

Specification of Curved Wire Mesh Fence

Material: low carbon steel wire or galvanized wire.

Color: green, blue, white, gray or customized according to RAL colors.

Wire diameter: 3–8 mm.

Mesh size: 50 × 100 mm, 50 × 150 mm, 50 × 200 mm, 75 × 150 mm, 75 × 200 mm.

Panel height: 0.60–2.43 m (standard) or customized.

Panel length: 2–3 m or customized.

Curve quantity: 2, 3 or 4.

Post type: peach post, square post, rectangular post and round post.

3D Fence Panel Specification

Panel height Panel Length Wire Diameter Mesh Size Curve No.

0.6/0.63m 2.5m or custom Gal + Powder Coated 3.85mm / 4.0mm 4.85mm / 5.0mm Gal + PVC Coated 3.0mm / 4.0mm 4.0mm / 5.0mm Hot-dipped Gal.

50*200mm

55*200mm

50*150mm

75*150mm 2

1.0/1.03m 2

1.2/1.23m 2

1.5/1.53m 3

1.7/1.73m 3

1.8/1.83m 3/4

1.9/1.93m 3

2.0/2.03m 4

2.4/2.43m 4

Note: The fence can be customized according to your required if above specification is not satisfied with you.

ANPING SPIDER WIRE MESH CO., LTD is focus on Wire Mesh Fencing solution, including Anti Climb Fence, Chainlink Fence, All kinds of Welded Mesh Fence, Temporary Fence, Crowd Barriers, Star Pickets, etc And we can supply a complete set wire mesh fencing, including the mesh panel or wire mesh in roll, post, Y arms, footing, clips, bolts, nuts and all the fencing accessories.

Also all the sizes can be customized according to buyer’s request.

In here, you can achieve one-stop shopping, will help you save the time & cost.
