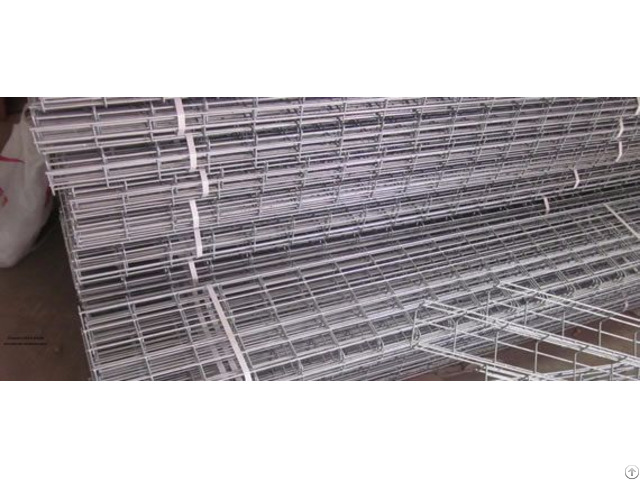

Welded Wire Mesh Cable Tray - China

Welded Wire Mesh Cable Tray, Easy for line check, cleaning, Fast heat dispersion, Width 50mm, 100mm, 150mm.

Surface Finish: Zinc Plated, Hot Dipped Galvanized, Electrolytic Polishing, Powder Coating, Polished.

Width: standard wire mesh cable tray width include 50mm, 100mm, 150mm, 200mm, 300mm, 400mm, 450mm, 500mm & 600mm.

Height: standard depth include 35mm, 54mm, 105mm & 150mm.

Specification:

Thickness: 0.5 mm - 2.0 mm (22 - 27 Gauge)

Height: 25 mm - 500 mm (Light, Medium, Heavy Duty)

Width: 50 mm - 1200 mm

Length: 2-10M (can be produced according to appointed length)

Finished: Pre-galvanized (Z80 - Z275), hot dipped galvanized, power coating

Features:

Increase the current carrying capacity of cables.

Takes up to 25 percent less space than ladder.

Hole pattern designed to provide maximum flexibility for positioning cable ties.

Fast speed of installation.

Item is named through Breadth*Height, (For example : 100*50, 200*30), the dimension means the inside dimension.

Usually Length of cable tray is 3000mm Breadth have different dimensions, bending height can be divided into 30mm, 50mm, 100mm

and 150mm.

3000*450*50mm wire basket cable tray specification:

Size：3000*400*50mm.

Diameter of wire: 4mm 5mm.

Load Capacity: 50-1000kg.

Mesh size: 100*50mm.

Surface treatment: galvanization.

Thickness of galvanization: more than 12μm.

Color: Blue and white.
