Tufflex Packaging - China

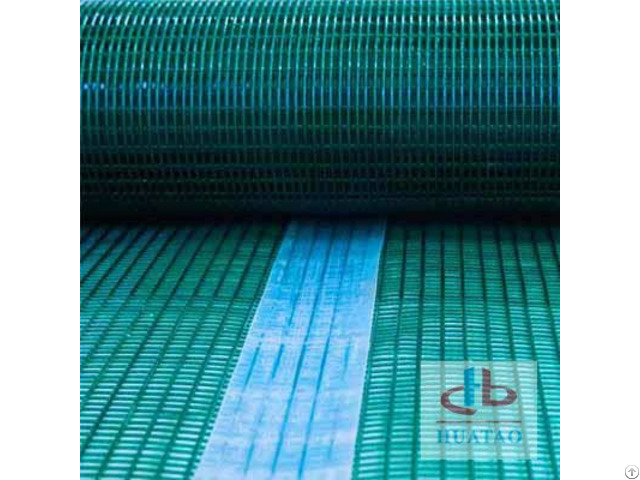

Tufflex is polyurethane coated stainless steel wire rope screen with the same open area as woven wire and huge advantages over traditional screens.

The Tufflex screen is made up of two types of ropes welded together.

The rope running from hook to hook is a wire rope with a thick polyurethane covering.

This rope, with the wire, allows the hooked edge screen to be tensioned like other hooked edge screens, with no modifications to machinery required.

The same maintenance procedures of checking the screen tension applies to Tufflex screens.

The other rope is made up of a fine synthetic cord, also with thick polyurethane covering, and runs parallel to the hooked edge.

For side-tensioned set-ups, this rope acts like rider bars for larger stones to slide down the deck, channelling smaller ones closer to the apertures.

This increased stratification improves screening efficiency.

With the end-tensioned screens, this rope can be used on top, running in a cross-flow orientation, or positioned underneath the rope with the wire.

Tufflex is a polyurethane-coated screen media that can be substituted for traditional woven wire screens with minimal adjustment to the screen deck.

Available in several combinations of both rope and wire diameter and aperture size, Tufflex offers additional customisation options via partially or fully welded screen cloths.

The smooth surface of the polyurethane prevents sticking and blinding, which is further enhanced by the flexibility offered by Tufflex’s cloth construction.

The Tufflex cloths not only improved the quality but also minimised blinding, improved efficiency and have great wear.

this provides the site with longer periods between changeover and less downtime during busy screening periods.

The available range of Tufflex screens is extensive, with aperture sizes ranging from 1.5mm to 45mm and square and rectangular aperture shapes, similar to woven wire.

The wire rope diameter ranges from 1.5mm to 12mm, with custom-made rectangular slots as fine as 0.7mm wide.

The construction varies with either fully or partially welded wires.

Sheets of poly can also be welded on for “hot spot” impact protection or enhanced abrasion protection along the hooks.

Get quotation:

TEL: +86-311-80690567 Mobile Phone: +8613383118952 Contact me with WhatsApp

Email : team11athuataoloverdotcom Address: NO.

298 ZHONGHUA NORTH STREET, XINHUA DISTRICT, Shijiazhuang, China.

Zip: 050000

Wechat: 13383118952

Website: wwwdottufflexscreendotcom

Company Contact:

• Posted By: Huatao Group LTD

• Phone: 0086 13383118952

• Address: Zhonghua North street No.298, Shijiazhuang , Hebei , China

• Email:

• Business Description: HUATAO GROUP LTD was found in 2008 by the owner Floyd, As the need of development upgrade to the Group company,The boss collect all factories in together and establish HUATAO GROUP.

  The group company provide a wide range of products and do the professional services all over the world which relate to Paper and Pulp Mills,Cardboard Packing industry,Filtration and separation,Constructions and other projects,landscape design,Silk Screen Printing ,Quarry and Mining, Industry Screen, etc.

  Polyurethane Tufflex Screen is a new product at 2018 - We have a specialized team for develop the tufflex screen, Tufflex is a light, flexible polyurethane mesh screen with similar open area as woven wire screens.

  The mesh is cut and hook-edged to suit all types of screening equipment with a cambered deck (side- and end-tensioned).

  The tufflex screens have been widely used in the industries of nuclear energy, petrochemistry, water treatment, food, steel, mining etc.
