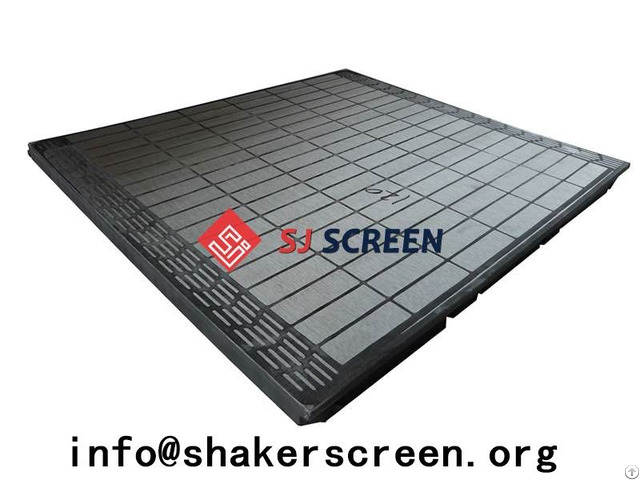

Replacement Screen for SWACO MAMUT Shale Shaker – Composite Frame

Technical Parameter Mesh Material: stainless steel 304/316/316 L.

Frame Material: composite.

Screen Type: XL, XR.

Size: 1115 × 763 mm.

Weight: 11 kg.

API RP 13C Designation: API 20 – API 325.

Color: grey.

Package: packed in paper carton, shipped by wooden case.

Replacement shaker screen for SWACO MAMUT shale shaker.

SJ-MAMUT shaker screen is compatible with MAMUT shale shaker from M-I SWACO.

It is one of the necessary equipment accessories of drilling fluid shale shaker.

Stainless steel 304 wire mesh cloth is divided into independent small surface areas to prevent the part excessive expansive damaged.

There are 2 layers, 3 layers, even 4 layers screens to increase the efficiency and reduce the cost of drilling mud treatment.

Adaptable Shale Shaker Model SJ-MAMUT shaker screens are used as the substitute screen for SWACO MAMUT shale shaker.

Competitive Advantage

Composite frame with strengthening supporting tendons.

SS 304/316 wire mesh cloth does not rust or delaminate.

Strong adhesive technology for high sealing property.

Manufactured according to the API RP 13C (ISO 13501).

Scientific & reasonable cost control system for competitive price.

Adequate inventory in the shortest time to meet customers' demand.

Warranty Period: 1 year.

Working Life: 400–450 hours.

Performance Parameter

Download Catalogue

Screen Designation Mesh Type API RP 13C Designation Conductance Number D100 Separation (microns) Non-Blank Area (sq.

ft)

SJ-MAMUT-A325 XR API 325 0.39 44 5.5

SJ-MAMUT-A270 XR API 270 0.67 57 5.5

SJ-MAMUT-A230 XR API 230 0.71 68 5.5

SJ-MAMUT-A200 XR API 200 1.32 73 5.5

SJ-MAMUT-A170 XR API 170 1.34 83 5.5

SJ-MAMUT-A140 XR API 140 1.89 101 5.5

SJ-MAMUT-120 XR API 120 1.89 134 5.5

SJ-MAMUT-A100 XR API 100 2.66 164 5.5

SJ-MAMUT-A80 XR API 80 2.76 193 5.5

SJ-MAMUT-A70 XR API 70 3.33 203 5.5

SJ-MAMUT-A60 XR API 60 4.1 268 5.5

SJ-MAMUT-A50 XR API 50 5.17 285 5.5

SJ-MAMUT-A40 XR API 40 8.64 439 5.5

SJ-MAMUT-A35 XR API 35 9.69 538 5.5

SJ-MAMUT-A20 XR API 20 10.88 809 5.5

* D100: Particles this size and larger will normally be discarded.

* API: Corresponding API sieve equivalent as per API RP 13C.

* Conductance No: This represents the ease with which a liquid can flow through the screen.

Larger values represent higher volume handing.

Show Details

Back side of composite screen for SWACO mamut shale shaker.

SWACO MAMUT screen replacement (reverse) Replacement SWACO MAMUT shaker screen made of SS 304 wire mesh cloth.

Top quality stainless steel wire mesh cloth SWACO MAMUT shaker screen with supporting bar.

Supporting tendons Remarks: M-I SWACO, MAMUT are marks of M-I L.L.C.

ShengJia only produces the replacement screens but not original from M-I SWACO.
