Swaco Als 2 - China

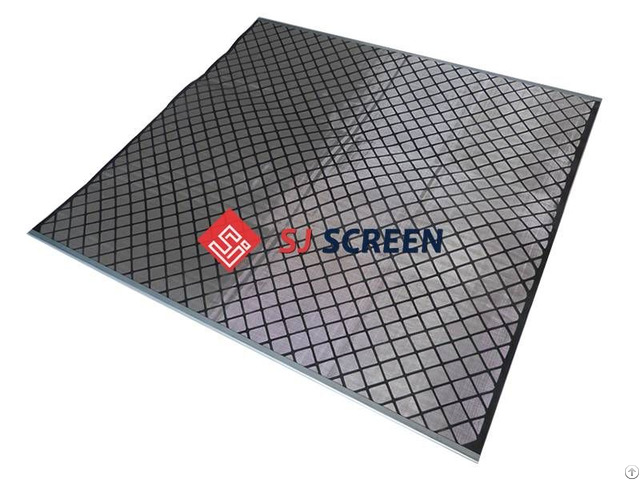

Replacement SWACO ALS-2 Shale Shaker Screen– Hook Strip Flat Screens

Technical Parameter Mesh Material: stainless steel 304/316/316 L.

Frame Material: Q235 steel.

Screen Type: XL, XR.

Size: 1141 × 1210 mm.

Weight: 2.6 kg.

API RP 13C Designation: API 18 – API 325.

Package: packed in paper carton, shipped by wooden case.

Replacement shaker screen for SWACO ALS-2 shale shaker.

SJ-ALS-2 shaker screen with dimension of 1141 × 1210 mm, is produced to meet the exact API specifications as a replacement screen for ALS series shale shakers from M-I SWACO.

It is commonly compatible with the ALS-2 shaker.

Banded steel hook edges prevent the screen from flattening and eliminating mesh pull-out caused by fine wire mesh or high tension screens.

There are various mesh combinations available according to different drilling applications.

XR or XL mesh range from API 18 to API 325 - Adaptable Shale Shaker Model SJ-ALS-2 shaker screens are used as the substitute screen for SWACO ALS-2 shale shaker.

Competitive Advantage

100% interchangeable with OEM brands screen panel size.

SS 304/316 wire mesh cloth does not rust or delaminate.

Hook strip soft screen with maximum non-blank areas.

Manufactured according to the API RP 13C (ISO 13501).

Scientific & reasonable cost control system for competitive price.

Adequate inventory in the shortest time to meet customers' demand.

Warranty Period: 1 year.

Working Life: 400–450 hours.

Performance Parameter

Download Catalogue

Screen Designation Mesh Type API RP 13C Designation Conductance Number D100 Separation (microns) Non-Blank Area (sq.

ft)

SJ-ALS-2-A325 XL API 325 0.36 43 5.5

SJ-ALS-2-A270 XL/XR API 270 0.48 58 5.5

SJ-ALS-2-A200 XL/XR API 200 0.8 81 5.5

SJ-ALS-2-A170 XL/XR API 170 1.0 92 5.5

SJ-ALS-2-A140 XL/XR API 140 1.28 103 5.5

SJ-ALS-2-A120 XL/XR API 120 1.45 130 5.5

SJ-ALS-2-A100 XL/XR API 100 1.59 142 5.5

SJ-ALS-2-A80 XL/XR API 80 2.19 187 5.5

SJ-ALS-2-A70 XL/XR API 70 2.82 222 5.5

SJ-ALS-2-A60 XL/XR API 60 3.34 275 5.5

SJ-ALS-2-A50 XL API 50 5.19 312 5.5

SJ-ALS-2-A35 XL API 35 9.13 536 5.5

SJ-ALS-2-A20 XL API 20 9.69 538 5.5

SJ-ALS-2-A18 XL API 18 15.7 927 5.5

* D100: Particles this size and larger will normally be discarded.

* API: Corresponding API sieve equivalent as per API RP 13C.

* Conductance No: This represents the ease with which a liquid can flow through the screen.

Larger values represent higher volume handing.

Show Details

Replacement SWACO ALS-2 shaker screen made of top-quality 304 stainless steel wire cloth.

Top-quality 304 stainless steel wire cloth Replacement SWACO ALS-2 shaker screen with steel hook strip.

Steel hook strip edge Remarks: M-I SWACO, ALS-2 are marks of M-I L.L.C.

ShengJia only produces the replacement screens but not original from M-I SWACO.
