Stainless Steel Dutch Woven Mesh - China

Stainless steel Dutch woven mesh is a kind of stainless steel filter with high filtration accuracy.

It is also widely used as a kind of stainless steel mesh.

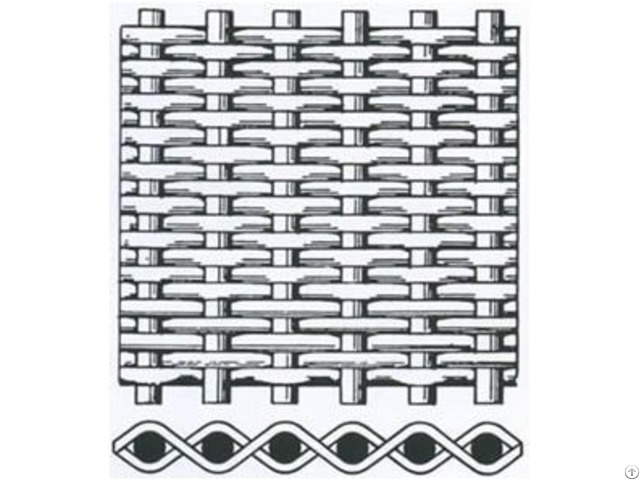

The characteristics of BZ stainless steel Dutch woven mesh are that the wire diameter and mesh number are different in the warp and weft directions.

The thinner the weft, the more the mesh number, the thicker the warp, the smaller the mesh number, the mesh shape is rectangular.

The weft of Dutch woven webs is compact, the maximum number of webs is up to 2800, and the filtration accuracy is 3μm.

Compared to stainless steel square mesh, Wholesale Dutch woven mesh is thicker, has higher strength, higher filtration accuracy and longer service life.

This is a very high filtration accuracy that cannot be achieved with a square mesh.

Stainless steel Dutch braided mesh for sale is widely used in precision pressure filters, fuel filters, vacuum filters, filter components of raw materials, aerospace, oil refining, pharmaceutical, sugar, petroleum, chemical, chemical fiber, rubber, tire manufacturing, metallurgy, food, health research and other industries.

Product features:

● Better structural strength and service life.

● Good mechanical properties.

● High filtration accuracy and stability.

● Good acid, alkali, corrosion resistance.

Parameters and specifications of stainless steel Dutch braided nets

The main parameters of stainless steel Dutch braided mesh are wire diameter, mesh number and filtration accuracy.

Because the wire diameter and mesh number of stainless steel Netherlands woven mesh are not the same in the direction of the warp and weft, so the wire diameter is usually expressed by the warp diameter * weft diameter, mesh number is expressed by the number of warp and weft.

China Dutch woven mesh commonly used materials are stainless steel wire: SS304, SS316, SS316L, iron wire and tin-plated phosphor copper wire.

Bzwiremesh can also produce Dutch woven nets of other materials according to customer requirements.

There are two types of stainless steel Dutch woven nets: ordinary Dutch woven and twill Dutch woven.

Common Dutch weave is used for low mesh products and twill Dutch weave is used for high mesh products.
