Sintered Wire Mesh - China

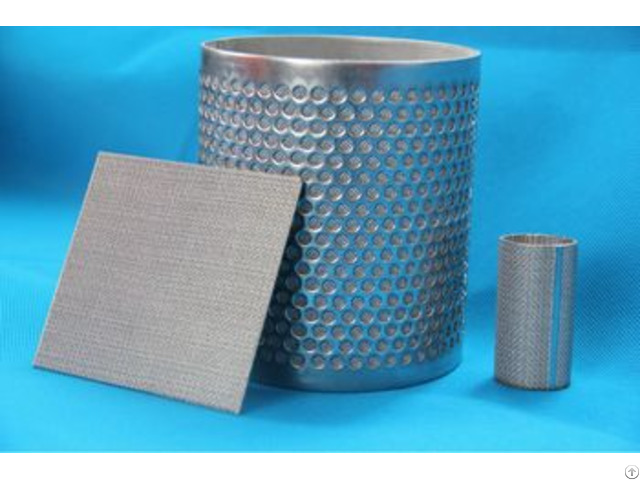

Sintered Wire Mesh is a standard lamination structure made by sintering multi-layers of stainless steel wire cloth together through vacuum processing.

Involved processing includes vacuum sinter, compression and rolling and fabricating.

Sintered metal is a kind of porous metal sheet with wide applications.

Commonly three or five layers are applied in manufacture of sintered mesh.

Tejido can supply sintered wire mesh laminates and its finished filter cartridges and elements products.

Sintered Mesh Laminates, Three or Five Layers as Standard and Commonly Used Filter Media for Filter Cartridge and Elements Processing.

General Information:

Materials: SS304, SS316, SS316L

Standard Sintered Mesh Size: 500x1000mm; 600x1200mm.

Max size: 610mmx1250mm Features: Sintered mesh has the superior advantage of fine micron opening (from 1micron to 100micron), high durability, high strength, easy to wash than the other filter materials.

· Constant filter rating: with protective layers and sintering combination technology, the mesh of the filter layer is not easy to change.

· High mechanical strength.

Excellent resistance to pressure and high mechanical strength thanks to the fourth and fifth metal layers reinforced.

· Corrosion resistance as a result of adopting choice 316L.

· High accuracy: Outstanding filtration performance can be achieved thanks to the precise aperture of the control layer, also the good function of dispersion layer.

· Heat resistance.

Heat resistant up to 480℃.

· Easy processing: The sintered metal sheet is suitable to cut, punching, warp tension and jointing.

· Easy Washing: Especially back washing owing to the surface filtration structure.

Company Contact:

• Posted By: Tejido Stainless Steel Mesh Co.,Ltd.

• Phone: 0086-5320-9377936

• Address: Rm.409,Zhongyu,No.1618,No rth Youyi Road ,, Dezhou , Shandong , China

• Email:

• Website: https://www.stainlesssteelwiremesh.org

• Business Description: Leader in Stainless Steel Mesh and Processed Filter Products, China Manufacturer.

  We are one of the top manufacturers and exporters of SS wire mesh and wire cloth products in China.

  Tejido is a basic weaver of stainless steel wire mesh, screen and cloth in various grades of stainless materials, including but not limited to AISI 304, 304L, 316, 316L.

  As a professional weaver of stainless steel wire mesh and industrial wire cloth for fine filtration and sieving use, Tejido offers stainless steel fine mesh, SS micro wire mesh, wire cloth and filter cloth, decorative wire mesh curtains and cladding, SS wedge wire screen and elements, extruder screen for plastic and rubber, stainless steel filter elements and cartridges, filter discs pack screen, stainless steel wire mesh test sieves, stainless steel window screen.

  Wire mesh basic aperture ranges from 5.00 to 0.028mm (equivalent to 1mesh per inch to 500mesh per inch), also 3.5mm to 5mm (filter cloth 28# to 1250# of china national professional standard).
