Single Layer Wire Mesh Disc - China
price: contact company for price

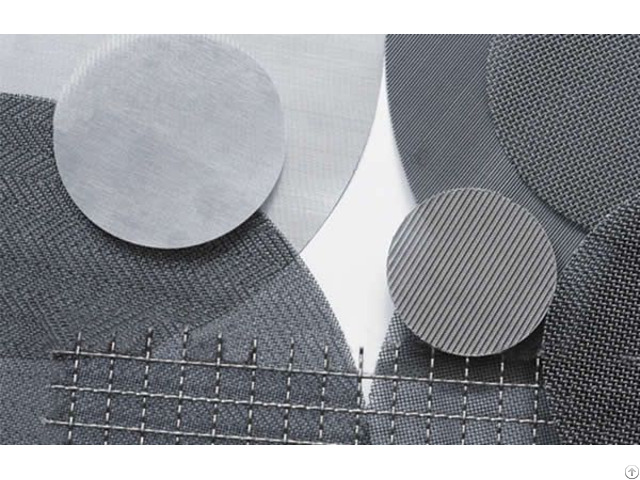

Single-layer disc is in contrast with multi-layer pack screen.
The number and the arrangement of welding spots can be produced according to specification requirments.
Since single layer disc screen needs simple processing compared with multi-layers, it costs less than pack screens.
Processed from mesh cloth (woven mesh or sintered mesh sheet) and sheet metal (perforated sheet or expanded mesh) into circular shapes.
Disc Diameter: 1-60"
Disc shapes: Rectangle, oval, round, square and annular mesh sheets.
Material Options:
Stainless Steel Mesh (SS 304, SS 304L, SS 316, SS 316L);
Copper Mesh (Red copper Mesh, Brass Wire Mesh, Phosphor Bronze Wire Mesh);
Low Carbon Steel Mesh;
Aluminum Mesh.
Application:
Features: Smooth surface with no sharp edges, burrs or acute angles.
Anti-abrasive & anti-corrosive in nature, and high filtration capacity.
Available in different size and variants according customers order.
Edge: With or Without Framework.
Woven Mesh Filter Media Range:
Wire Diameter: 0.025-3.4mm
Aperture Size: 0.026-23.4mm
Weave Type: Plain Weave (3-300 Mesh); Twilled Weave(20-635 Mesh); Dutch Weave (7x40mesh-325x2300 mesh)
Company Contact:
- Posted By: China YuXuan Extruder Screen Co., Ltd.
- Phone: +86-534-2650118
- Address: No. 118 Dong Fang Hong Road,Dezhou City, Shandong Province., Dezhou , Shandong , China
- Email:
- Website: https://www.extruderscreen.com
Published date: November 15, 2021
- Business Description: Welcome to YuXuan!
Extruder screen types are mainly mesh discs, leaf filters, spot welded mesh packs, rim or framed packs, cylinders or tube filters.
It is made by wire mesh cloth processed into single layer or multi-layer pieces with optional frames.
Metal Mesh Extruder Screen Filter is applied to provide a clean and clear melt filtration for plastic and rubber processing machinery.
Filter Media commonly used are Stainless Steel Wire Cloth Woven or Sintered.
The wire cloth is cut or punched into pieces or discs first, then compressed with multi-layers into screen packs and other forms.
In plastic extrusion, stainless steel extruder screen is designed for PP, PE and other plastic hot-melt extruding processes.
The fine mesh Dutch Weave Wire Cloth Layer together with a Plain Weave Square Mesh support layer forms screen packs are used for preventing impurities in fine extrusion.
It is effect to keeps away mixing of foreign particles in finally equipped extrusion product.
Featured Mesh Screen and Filter Strainers, Processed from Stainless Steel Woven Wire Mesh Cloth SUS302, 304, 304L, 316 and 316L:
Spot Welded Circle or Round Disc Extruder Screens, to be placed into extruder head
Cylinder Extruder Screen for Thermoplastic polymers
Leaf Filters
Multilayer Woven Wire Mesh Extruder Screen Packs of Dutch Weave Wire Cloth Plus Plain Weave Support Filter Mesh
SS Wire Mesh Filter Disks, with thin frame or rims
Dutch Reverse Weave Mesh Continuous Filter Belts
Pleated Candle Filters
Stainless Steel Wire Mesh Strainers
