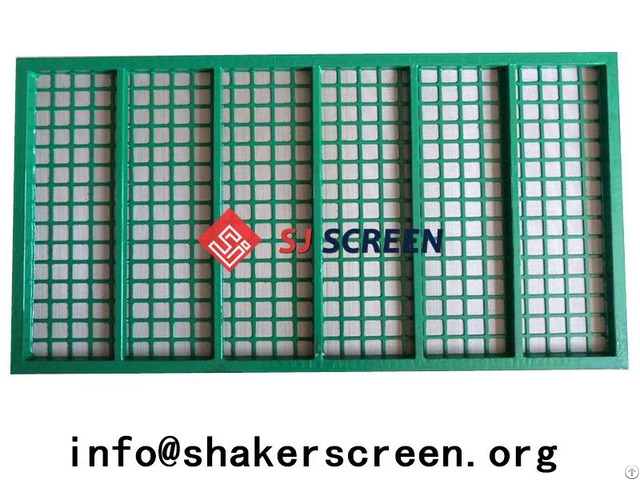

Steel Frame Shaker Screen for Scomi Prima 3G/4G/5G Shale Shaker

Technical Parameter Mesh Material: stainless steel 304/316/316 L.

Frame Material: Q235 steel.

Screen Type: XL, XR.

Size: 1175 × 610 mm.

Weight: 13 kg.

API RP 13C Designation: API 20 – API 325.

Package: packed in paper carton, shipped by wooden case.

Replacement shaker screen for Scomi prima 3G/4G/5G shale shaker.

DescriptionCompetitive AdvantagePerformance ParameterShow Details

SJ-SG shaker screen, also commonly called Scomi prima 3G/4G/5G screen, refers to the replacement screen for Scomi Prima series shale shakers.

The main shaker models are including SCM-PrimaG 3P/4P/5P linear motion shale shaker and SCM-PrimaG 4PDD cascading shale shaker.

Screen quantity correspondingly varies by the different shaker models.

The whole screen cloth is divided into independent small surfaces by rectangle perforated holes to prevent the part excessive expansive damaged.

Adaptable Shale Shaker Model SJ-SG shaker screens are used as the substitute screen for SCM-PrimaG 3P linear motion shale shaker (3-panel).

SCM-PrimaG 4P linear motion shale shaker (4-panel).

SCM-PrimaG 4PDD cascading shale shaker (4-panel).

SCM-PrimaG 5P linear motion shale shaker (5-panel).

Competitive Advantage

100% interchangeable with OEM brands screen panel size.

SS 304/316 wire mesh cloth, triple layered sandwich construction.

Bonded to perforated panel, rugged structural support.

Manufactured according to the API RP 13C (ISO 13501).

Scientific & reasonable cost control system for competitive price.

Adequate inventory in the shortest time to meet customers' demand.

Warranty Period: 1 year.

Working Life: 400–450 hours.

Performance Parameter

Download Catalogue

Screen Designation API RP 13C Designation Conductance Number D100 Separation (Microns) Non-Blank Area (Sq.

ft)

SJ-SG-A325 API 325 0.38 48.8 5.56

SJ-SG-A270 API 270 0.39 53.8 5.56

SJ-SG-A230 API 230 0.51 63.4 5.56

SJ-SG-A200 API 200 0.71 77.8 5.56

SJ-SG-A170 API 170 0.88 91.8 5.56

SJ-SG-A140 API 140 1.22 114.6 5.56

SJ-SG-A120 API 120 1.48 120.1 5.56

SJ-SG-A100 API 100 2.06 142.5 5.56

SJ-SG-A80 API 80 3.55 1771 5.56

SJ-SG-A70 API 70 4.71 216.6 5.56

SJ-SG-A60 API 60 5.87 256.8 5.56

SJ-SG-A50 API 50 6.62 321.0 5.56

SJ-SG-A45 API 45 6.72 377.2 5.56

SJ-SG-A35 API 35 7.96 517.8 5.56

SJ-SG-A20 API 20 9.01 862.2 5.56

* D100: Particles this size and larger will normally be discarded.

* API: Corresponding API sieve equivalent as per API RP 13C.

* Conductance No: This represents the ease with which a liquid can flow through the screen.

Larger values represent higher volume handing.

Show Details

The back side picture of replacement shale shaker screen for lScomi prima 3G/4G/5G shale shaker.

SJ-SG shaker screen back view A close up picture of lScomi prima 3G/4G/5G shale shaker screen made of SS 304 wire mesh cloth.

Top-quality stainless steel wire mesh cloth The close up picture of replacement lScomi prima 3G/4G/5G shale shaker screen with rectangular steel wear plate.

Rectangular steel wear plate Remarks: Scomi, SCM-PrimaG 3P, 4P, 4PDD, 5P are marks of Scomi equipment INC.

ShengJia only produces the replacement screens but not original from Scomi.
