Pwp - China

Replacement PWP Screens for Shakers

Technical Parameter Material: stainless steel 304/316/316 L.

Construction Type: PWP (perforated wear plate).

Wear Mesh Shape: rectangle.

API RP 13 C Designation: API 20 – API 325.

Size: 1050 × 570 mm.

Weight: 4.2 kg.

Series: DX, DF, HP optional.

Color: green.

Package: 2 pcs per carton, 20 pcs/wooden case.

Replacement PWP shale shaker screen for shale shaker.

SJ-PWP DH Shaker Screen is designed for the replacement screen of shale shakers.

There is an operating handle on one side of the screen and a triangle breach in the center of the opposite side.

Thanks to he machine assembled backside seal rubber, even the strip appears a small broken part, the other parts will be steady on back panel still.

The most obvious advantage of PWP screen is better resistant to oil.

And mesh sizes are commonly available from API 40 to API 270 - Adaptable Shale Shaker Model SJ-PWP DH shaker screens are used as the substitute screen for 4-panel shaker.

Triple shaker.

Dual with mud cleaner.

VE (Vapor Extraction).

Competitive Advantage

Stainless steel 304/316 wire mesh for longevity.

Increase shaker capacity and reduce mud loss.

Scientific & reasonable cost control system for competitive price.

Higher flow rates without sacrificing cut point integrity.

API RP 13C (ISO 13501) compliant.

Adequate inventory in the shortest time to meet customers' demand.

Warranty Period: 1 year.

Working Life: 400–450 hours.

Performance Parameter

Download Catalogue Screen Designation Mesh Type API RP 13C Designation Conductance Number D100 Separation (microns) Layer No.

Weight (kg)

SJ-PWP DH-A325 DX API 325 0.39 44 2/3 4.2

SJ-PWP DH-A270 DX API 270 0.67 57 2/3 4.2

SJ-PWP DH-A230 DX API 230 0.71 68 2/3 4.2

SJ-PWP DH-A200 DX API 200 1.32 73.3 2/3 4.2

SJ-PWP DH-A170 DX API 170 1.34 85.4 2/3 4.2

SJ-PWP DH-A140 DX API 140 1.89 104 2/3 4.2

SJ-PWP DH-A120 DX API 120 1.89 117.8 2/3 4.2

SJ-PWP DH-A100 DX API 100 2.66 142 2/3 4.2

SJ-PWP DH-A80 DX API 80 2.76 170.4 2/3 4.2

SJ-PWP DH-A70 DX API 70 3.33 203 2/3 4.2

SJ-PWP DH-A60 DX API 60 4.1 268 2/3 4.2

SJ-PWP DH-A50 DX API 50 5.17 285 2/3 4.2

SJ-PWP DH-A40 DX API 40 8.64 439 2/3 4.2

SJ-PWP DH-A35 DX API 35 9.69 538 2/3 4.2

SJ-PWP DH-A20 DX API 20 10.88 809 2/3 4.2

* D100: Particles this size and larger will normally be discarded.

* API: Corresponding API sieve equivalent as per API RP 13C.

* Conductance No: This represents the ease with which a liquid can flow through the screen.

Larger values represent higher volume handing.

Show Details

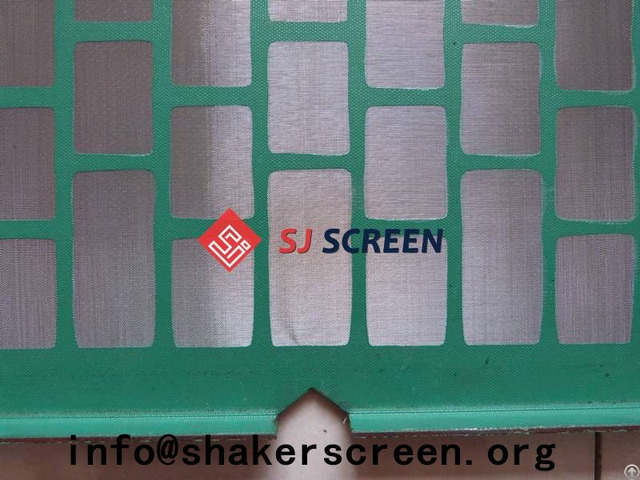

The close up picture of replacement shaker screen with operate handle.

Handy handle for convenient operation The close up picture of replacement shaker screen with triangular breach.

Triangular breach The back side picture of replacement shale shaker screen for shakers.

Rectangle shape wear plate Remarks: , , PWP, DX, DF, HP are marks of Corporation.

ShengJia only produces the replacement screens but not original from .
