Replacement PMD Screens for Shakers

Technical Parameter Material: stainless steel 304/316/316 L.

Construction Type: PMD (pyramid).

Wear Mesh Shape: rectangle.

API RP 13 C Designation: API 20 – API 325.

Size: 1050 × 570 mm.

Weight: 5.2 kg.

Series: DX, DF, HP optional.

Color: green.

Package: 2 pcs per carton, packed in wooden case.

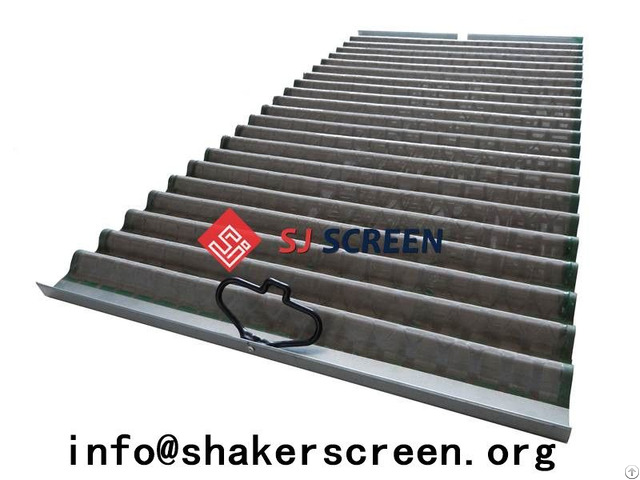

Replacement PMD shale shaker screen for shale shaker.

SJ-PMD DH Shaker Screen is one of the most popular shaker screens replacement.

It is designed for the high capacity 4-panel shale shakers.

Installed with pyramid screens, the non-blanked screening area has increased 20% than conventional flat screens.

All replacement shaker screens for shale shakers are all compliant with API RP 13C (ISO 13501), the new industry standard for physical testing and labeling of shaker screens.

Adaptable Shale Shaker Model SJ-PMD DH shaker screens are used as the substitute screen for 4-panel shaker.

Triple shaker.

Dual with mud cleaner.

VE (Vapor Extraction).

Competitive Advantage

Stainless steel 304/316 wire mesh for longevity.

Increase shaker capacity and reduce muds loss.

Non-blanked screening area increased by more than 20%.

Scientific & reasonable cost control system for competitive price.

API RP 13C (ISO 13501) compliant.

Adequate inventory in the shortest time to meet customers' demand.

Warranty Period: 1 year.

Working Life: 400–450 hours.

Performance Parameter

Download Catalogue Screen Designation Mesh Type API RP 13C Designation Conductance Number D100 Separation (microns) Layer No.

Non-blank area (sq.

ft)

SJ-PMD DH-A325 DX API 325 0.39 44 2/3 5.66

SJ-PMD DH-A270 DX API 270 0.67 57 2/3 5.66

SJ-PMD DH-A230 DX API 230 0.71 68 2/3 5.66

SJ-PMD DH-A200 DX API 200 1.32 73 2/3 5.66

SJ-PMD DH-A170 DX API 170 1.34 83 2/3 5.66

SJ-PMD DH-A140 DX API 140 1.89 101 2/3 5.66

SJ-PMD DH-A120 DX API 120 1.89 134 2/3 5.66

SJ-PMD DH-A100 DX API 100 2.66 164 2/3 5.66

SJ-PMD DH-A80 DX API 80 2.76 193 2/3 5.66

SJ-PMD DH-A70 DX API 70 3.33 203 2/3 5.66

SJ-PMD DH-A60 DX API 60 4.1 268 2/3 5.66

SJ-PMD DH-A50 DX API 50 5.17 285 2/3 5.66

SJ-PMD DH-A40 DX API 40 8.64 439 2/3 5.66

SJ-PMD DH-A35 DX API 35 9.69 538 2/3 5.66

SJ-PMD DH-A20 DX API 20 10.88 809 2/3 5.66

* D100: Particles this size and larger will normally be discarded.

* API: Corresponding API sieve equivalent as per API RP 13C.

* Conductance No: This represents the ease with which a liquid can flow through the screen.

Larger values represent higher volume handing.

Show Details

The back side picture of replacement shale shaker screen for shakers.

SJ-PMD DH back view The close up picture of replacement pyramid shaker screen with triangular breach.

Triangular breach The close up picture of replacement pyramid shaker screen with operate handle.

Handy handle for convenient operation Remarks: , , PMD, DX, DF, HP are marks of Corporation.

ShengJia only produces the replacement screens but not original from .
