Military Gabions - China

Gabions Welded for Construction of Military Fortification Barrier - Anti Blast Defence Gabion Walls - Flood Control Wall

Welded Mesh Gabions with strong mesh panels and heavy zinc corrosion protection are ideal material for military defending wall and security barriers.

Wire Material for Military Barrier: Hot-dipped galvanized wire, Hot-dipped galvanized wire with PVC coated, Zn-10%-Al wire, Zn-5%-Al wire.

Military Cells Structure:

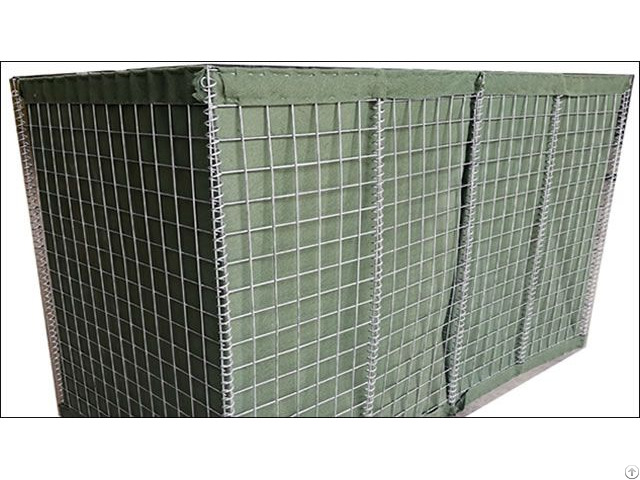

The gabion barrier is assembled with collapsible wire mesh cages and heavy duty fabric liners.

The cover panels, side panels and bottom panels are produced separately, then assembled to a basket secured with lacing wire or hog rings.

Selvedge wire used to increase the strength of the mesh baskets by reinforcing the welded mesh panels are thicker wire than the mesh wire applied and stronger.

Wire diameter range: 3.0-6.0mm

Spring selvedge wire Diameter: 4.0mm Gabion Mesh opening: 50*50mm, 75*75mm, 76.2*76.2mm, 100*100mm, more.

Geotextile: Heavy duty non-woven polypropylene, in colors sand color, biege color, military Green.

Company Contact:

• Posted By: Aerct Gabiony Factory

• Phone: 0086-534-8753002

• Address: Hongqi St. wuxi, Dezhou,China, dezhou , shandong , China

• Email:

• Website: https://www.gabiony.net

• Business Description: Aerct Gabiony Factory is a customer-driven producer and exporter of gabions and related wire netting products with good performance.

  Our factory is mainly engaged in box gabions mesh: gabions is made of low-carbon steel wire with high corrosion resistance, high strength and ductility or PVC-coated steel wire by mechanical weaving, and the box structure made of this net is gabion net cage.

  According to ASTM and EN standards, the diameter of low-carbon steel wire used varies according to engineering design requirements.

  Generally between 2.0-4.0mm, the tensile strength of gabion mesh steel wire is not less than 38kg/m2, the weight of metal coating is generally higher than 245g/m2, and the diameter of edge line of gabion mesh is generally larger than that of mesh wire.

  The length of the twisted part of the double wire shall not be less than 50mm to ensure that the metal coating and PVC coating of the twisted steel wire are not damaged.

  Utilizing a team approach, Aerct delivers excellent customer services and products including but not limited to: hexagonal wire netting, welded mesh gabions, woven hexagonal gabions, gabions baskets, gabion boxes, mattress, flexible soft hillside protection wire mesh gabions as well as other gabion systems.

  Aerct teams work with customers to standardize a manufacturing process, and deliver products and technical services as needed.

  As supplier of wire mesh gabions, Aerct is recognized as a one leader in quality and innovation.

  ISO 9001 certified in 1998.

  Welcome to contact us.
