Hook Strip Soft Screen - China

Hook Strip Soft Screen With Wide Screening Area

Hook strip soft screen is a type of shale shaker screen.

It is made from stainless steel mesh.

The structural design of the hook strip soft screen is similar to the hook strip flat shaker screen.

It commonly consists of two or three layers of stainless steel mesh.

Hook strip soft screen has no metal lining.

It is characterized by broad screening area.

Compared with hook strip flat screen, it has more available filtration area and lower disposal costs.

Hook strip soft screen is cheaper than the other shaker screens, such as hook strip flat shaker screen, steel frame shaker screen and three-dimensional shaker screen.

Selecting different screens depend on different drilling conditions can optimize the screening effect.

This type shaker screen is available in various types and sizes.

The specifications of hook strip soft screen can be customized according to your specific needs.

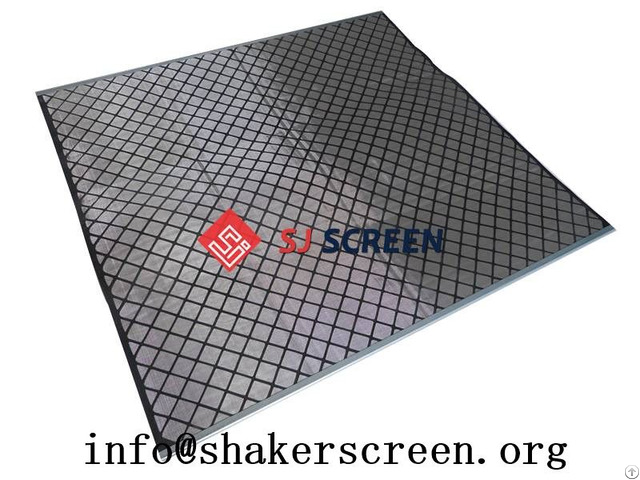

A piece of hook strip soft screen on a white background.

Its surface has quadrilateral resin covering.

Hook strip soft shaker screen with diamond pattern for SWACO ALS-2 shale shaker.

Hook strip soft shaker screen – SWACO ALS-2 Hook strip soft shaker screen with diamond pattern for Brandt 4 × 5/B40 shale shaker.

Hook strip soft screen – Brandt 4 × 5/B40 Specification Material: stainless steel wire.

Screen layers: two or three.

The Technical Parameters of Hook Strip Soft Screen

Screen Model Range of Mesh Dimension (length × width) Brand & Model of Shaker Weight (kg)

HSSS-1 20–150 600 × 1040 mm NCS-300 × 2 1.5

HSSS-2 20–150 700 × 1165 mm S250 2

HSSS-3 120–210 1400 × 460 mm ZCN 2.4

HSSS-4 120–210 1000 × 1150 mm NS-115/2 2.8

HSSS-5 20–80 927 × 914 mm JSS(U.S.A) 2.1

HSSS-6 20–80 1219 × 1524 mm SSS(U.S.A) 4.5

This type replacement screen can be specifically designed to fit various shale shakers.

Specifications can be customized according to your needs.

Advantage Soft screen surface, lightweight.

Simple structure, easy to operate.

Good corrosion resistance, high fluid handling capacity.

Broad mesh size ranges, fit for various applications.

More available screening area, higher screening efficiency.

Convenient installation.

Low prices, economical.

Application Applied in oil screening.

Filter the mud and other impurities in oil.

Applied in drilling operations.

Used as replacement screen for various shakers.

Used in the oil industry for solid-liquid separation.
