Welded Mesh Panel

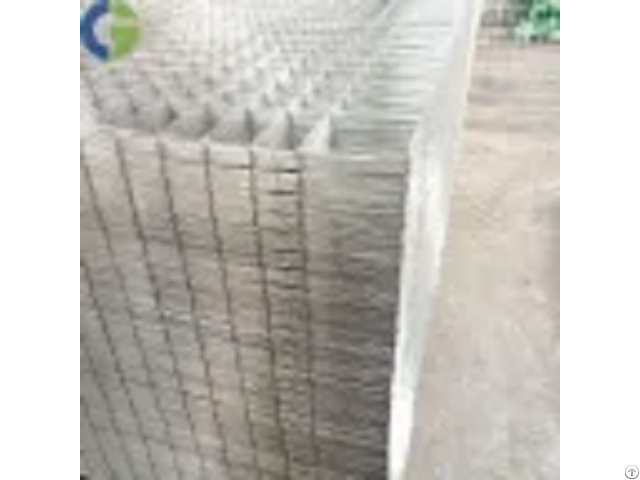

Welded Mesh Panel is made of high quality welded wire mesh.

These fine wires are welded together at their intersections to form a rigid, uniform mesh with a flat surface and strong structure.

The wire used in mesh panels can be made from a variety of materials, including steel, stainless steel and aluminum, and the mesh panels can be used for a wide range of applications such as fencing, security barriers, building reinforcement and isolation in industrial environments.

Depending on the specific application, we can produce panels in a variety of thicknesses and hole sizes.

Material: 'Low carbon steel wire(Q195, Q235), stainless steel wire

Wire diameter size

Wire Diameter(mm) Aperture (mm) Width(m) Length Inch MM 2.0mm-3.2mm 1" 25.4 0.914m-1.83m The length does not limit

2.0mm-4.5mm 2" 50.8 0.914m-2.75m 2.0mm-6.0mm 3" 70.2 0.914m-2.75m 2.0mm-6.0mm 4" 101.6 0.914m-2.75m 2.0mm-6.0mm 5" 127 0.914m-2.75m 2.0mm-6.0mm 6" 152.4 0.914m-2.75m 2.0mm-6.0mm 7" 177.8 0.914m-2.75m 2.0mm-6.0mm 8" 203.2 0.914m-2.75m Surface treatment

● Black welded mesh panel (paint oil) without any surface treatment.

● Electrical galvanized before/after welding (Electric galvanized welded mesh panel)

● Hot deep galvanized before/after welding (hot deep galvanized welded mesh panel)

● PVC coated welded mesh panel

● PVC Powder painted mesh panel

Welded Wire Mesh Category

The properties and characteristics of different materials can be classified as:

Galvanized welded wire mesh: This type of mesh is coated with zinc to prevent corrosion and rust, making it suitable for outdoor use.

Stainless steel welded wire mesh: This type of mesh is made from stainless steel, which is resistant to rust, corrosion and high temperatures, making it suitable for use in harsh environments.

PVC coated welded wire mesh: This type of mesh is coated with PVC, which provides an added layer of protection against corrosion and rust, as well as enhances its aesthetic appeal.

According to the use is divided into :

Welded mesh sheets: This type of mesh is available in large sheets, typically 4 x 2 meters, that is suitable for large projects, such as fencing and partitioning.

Welded mesh rolls: This type of mesh is available in rolls, making it more portable and easy to handle.

Welded mesh panels: This type of mesh is pre-fabricated into panels of specific dimensions, making it easy to install and reduces time on-site.

Welded mesh grating: This type of mesh is characterized by its open grid structure that is suitable for industrial and commercial flooring applications, security fencing, and architectural features.

Welded mesh reinforcement: This type of mesh is designed to provide reinforcement to concrete structures such as slabs, beams, walls, and foundations.

Company Contact:

• Posted By: Anping ChongGuan Wire Mesh Products CO.,LIMITED

• Phone: 13313088081

• Address: 800 meters east of Nanhoutuan,Donghuangcheng Town,Anping County, Hengshui , Hebei Sheng, China

• Email:

• Business Description: Anping Chongguan Wire Mesh Products Co., Ltd. is a production-oriented enterprise, located in Anping, Hebei, China.

  Our welded mesh factory was built in 1998 - Through many years of researching, technical improvement and continual expansion of production capacity, equipment increased to 50, annual production increased to 50 in 2002 - Welded mesh factory upgraded to Anping Chongguan Wire Mesh Products Co., Limited by the market request in 2014.

  Our main products are welded mesh, wire mesh fence, steel grating, wire mesh, galvanized wire, filter material, wire mesh conveyor belt, gabion, cages, perforated metal sheet and expanded metal sheet.
