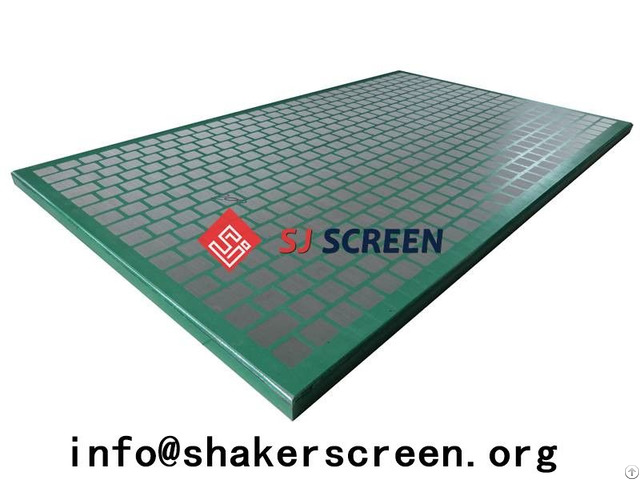

FSI 5000 Series Shale Shakers Screen Replacement – API Compliant

Technical Parameter Mesh Material: stainless steel 304/316/316 L.

Frame Material: Q235 steel.

Screen Type: XL, XR.

Size: 1067 × 737 mm.

Weight: 13 kg.

API RP 13C Designation: API 20 – API 325.

Package: packed in paper carton, shipped by wooden case.

Replacement shaker screen for FSI 5000 series shale shakers.

DescriptionCompetitive AdvantagePerformance ParameterShow Details

SJ-FSI 5000 shaker screens is manufactured as the replacement screen for FSI 5000 series shale shake from fluid system INC.

Steel frame shaker screens are commonly used in shakers with wedge fastening system.

There are wedge blocks used for fastening the screen panels, and result in simple visual checks of screen panels, the repair and maintenance work is easier and time saving.

Besides, we master excellent rubber strip seal glue technology to prevent rubber sealing loose and leakage.

Adaptable Shale Shaker Model SJ-FSI 5000 shaker screens are used as the substitute screen for FSI series 5000 BSBS Linear Power Side-By-Side Shaker.

FSI series 5000B DHC Double Header Mud Cleaner.

FSI series 5000B CD VGS™ Linear Cutting Drier.

Competitive Advantage

Current design, technical expertise.

Reliable & effective for drilling slurry purified equipment.

SS 304/316/316 L wire mesh cloth is corrosion & wear-resistant.

Manufactured according to the API RP 13C (ISO 13501).

Scientific & reasonable cost control system for competitive price.

Adequate inventory in the shortest time to meet customers' demand.

Warranty Period: 1 year.

Working Life: 400–450 hours.

Performance Parameter

Download Catalogue

Screen Designation API RP 13C Designation Conductance Number D100 Separation (microns) Non-Blank Area (sq.

ft)

SJ-FSI 5000-A325 API 325 0.39 44 6

SJ-FSI 5000-A270 API 270 0.67 57 6

SJ-FSI 5000-A230 API 230 0.71 68 6

SJ-FSI 5000-A200 API 200 1.32 73 6

SJ-FSI 5000-A170 API 170 1.34 83 6

SJ-FSI 5000-A140 API 140 1.89 101 6

SJ-FSI 5000-A120 API 120 1.89 101 6

SJ-FSI 5000-A100 API 100 2.66 164 6

SJ-FSI 5000-A80 API 80 2.76 193 6

SJ-FSI 5000-A70 API 70 3.33 203 6

SJ-FSI 5000-A60 API 60 4.10 256.8 6

SJ-FSI 5000-A50 API 50 6.62 268 6

SJ-FSI 5000-A40 API 40 8.64 439 6

SJ-FSI 5000-A35 API 35 9.69 538 6

SJ-FSI 5000-A20 API 20 10.88 809 6

* D100: Particles this size and larger will normally be discarded.

* API: Corresponding API sieve equivalent as per API RP 13C.

* Conductance No: This represents the ease with which a liquid can flow through the screen.

Larger values represent higher volume handing.

Show Details

Back view picture of FSI 5000 series shale shaker screen replacement.

FSI 5000 series screen (Reverse) FSI 5000 series shale shaker screen made of 304/316 stainless steel wire mesh cloth.

304/316 SS wire cloth & rectangle wear hole FSI 5000 series shale shaker screen with ribbed backing supporting.

Ribbed backing supporting structure Remarks: FSI, Fluid system, FSI 5000 are marks of Fluid System INC.

ShengJia only produces the replacement screens but not original from FSI.
