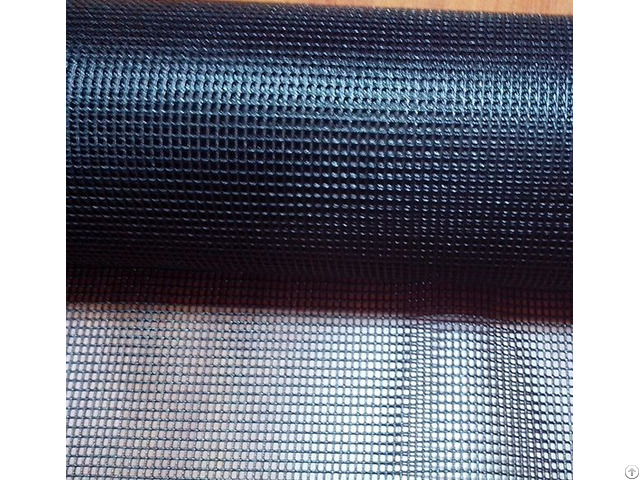

Fire Resistant Fiberglass Mesh - China

Black Vinyl Coated Flame Retardant Fiberglass Mesh, Water Proof Fabrics Used in

Constructions and Buildings as Window Screen and Mosquito Nets.

Materials meet

the FAR 25.853 standards.

Used for buildings, Architectural interior designs, construction and furniture.

Made by Fiberglass Mesh Weaving Machine from c

class and E class fiberglass woven roving as basis materials.

E & C fiber glass milk bottle yarn is a kind of single yarn or multi-plies.

The

fiber glass yarn twisted strand has the high strength, corrosion resistance, heat resistance and little moisture absorption.

We use different direction of

twisting yarns used for weaving all kinds fiberglass mesh and textiles for

building reinforcement, insulation and other uses.

Common Specification of C Class Black Coated Fiberglass Mesh Screen:

•Fiberglass Mesh size: 5x5mm, 4x5mm or 4x4mm;

•Weight/m2: 80g--160g;

•Mesh Length/roll: 50m, 100m or 200m;

•Mesh Width/roll: 1m--2m;

•Colors available for fiberglass mesh: white (standard), blue, green or other

colors;

•Special products are available according to requirement of customers.

Fiber Mesh Screen for Architectural Decoration

145g/M2, 4*5mm, Black Vinyl Coated Alkali Resistant Fiberglass Insect Screen, Easy washing, Anti-corrosion Fabrics Widely used on doors or windows to prevent

insects and flyes.

Fire Retardant Window Screen

Material: PVC coated fiberglass.

Mesh size: 17x15mesh, 18x16mesh, 20x20mesh, 16x16mesh.

Black, gray, white, bule, green, Charcoal or at request.

Weight: 115/m2, 110g/m2, 120g/m2.

Width: 0.5m to 3.0m, custom require available at request.

Length: 30m, 50m, 181m, customer request at request.

Black coated fiberglass mesh has excellent properties: Fire proof, ventilate

for sun shade, ultraviolet, high alkali-resistance, good cohesion, flexibility, tensile strength, etc.

Weaving Looms Applied for Manufacture of Black Vinyl Coated Fiberglass Mesh:

Major Index of Fiberglass Mesh Machine:

Electric Motor: 1.5 KW FOH- 56- 6, 2.0 KW FOH - 58 - 6, 960 rotation/ minutes.

Max.

shaft rotation: 130-200 rotation/minute.

Weft yarn choice: mechanical control, six color.

Weaving shaft coil distance(mm): 1380, 1860, 2060, 2366, 2566, 2866.

Weaving shaft coil diameter(mm): 550, 600.

Cloth Full Rolling Diameter(mm): 400.

Warp Yarn Feeding: Auto feeding.

Weft Yarn Feeding: Auto feeding.

Outside Dimension of the Machine(mm):

Width: 3875, 4180, 4380, 4680, 4880, 5180.

Depth: 1857; Height: 1640.

Weight of the Machine: 1600kg (motor not included).

Company Contact:

• Posted By: AoYong Glass Fibre Fabrics Co., Ltd

• Phone: +86-531-0308965

• Address: Yongxin Street, Development Zone, Dezhou, China, ji nan, shandong , China

• Email:

• Website: https://www.fiberglassmeshfabric.com

• Business Description: For over 10 years, Ao Yong Glass Fibre Fabrics Co.

  has been a leading supplier

  and exporter of Fiberglass Mesh, Fiberglass Tape, Screen, Cloth & Fabrics in

  China.

  Our strong commitment to providing high quality products has enabled us

  to retain our position in the market.

  Aoyong fiberglass yarn / filament has good tensile strength, small elongation

  rating, high elasticity and rigidity, good shock-resistance, good chemical

  resistance, small water absorbing rating, good stability and excellent heat

  resistance at high temperature.

  We manufacture and export Alkali Resistant (AR)

  Reinforced Fiberglass Mesh, Fiberglass Pavement Mesh and Tapes, Fire Resistant

  Fiberglass Mesh, Powder Coated Pet Screen, EIFS Construction Mesh Drywall

  Tapes, Wall Structural Reinforcing Fiberglass Mesh, Fiberglass Screen(Mosquito

  Control Net, Selvaged Insect Screen, Sun Shade Screen and European Style Portiere

  ，Fiberglass Geotextile Fabrics / Cloth), Fiberglass Mesh for Cement

  Reinforcement, Fiberglass Geogrid, Fiberglass Fabric for Ducting, Fiberglass Joint

  Tape, Pleated Mesh Panels.

  Visit our product pages for detailed information of

  our services.

  Our fiberglass finished products (fiberglass mesh, window screening/insect

  screening with selvages, fiberglass sunshade, fiberglass tape, etc.

  ) made with

  such materials also enjoy above characteristics.

  Widely used as reinforcing

  mesh, plaster mesh, pavement mesh, rendering mesh, insect screen and pet screen

  in construction and engineering projects.

  We welcome your contact.
