Fiberglass Mesh Production Line - China

We supply fiber yarn processing machines and fiberglass mesh producing machines with constantly innovated designs.

Our production lines can be used to produce fiberglass mesh, selvaged fiberglass insect screening fabrics, window screen, fiber glass safety net, wall protection reinforcing mesh, mosaic backing tapes with glass fiber mesh fabric.

The machine can produce 1m, 1.2 m, 1.5 m, 2.0 m, 2.3 m, 2.4 m kinds of width specifications; mesh density is adjustable between 4 and 12 ; Compared with the traditional machine, this machine has the characteristic of high quality, high speed, low noise, low power, mesh accurate and good stability.

A worker can operate 3-6 machines.

A machine can produce two or more of the network products of different widths at the same time.

After sales technical supports and on site installation are provided upon request.

We also help training of workers on site.

General Information of Fiberglass Mesh looms:

1 - Mesh Ranges: 16x16 mesh, 12x12 mesh, 9x9 mesh, 6x6 mesh, 4x4 mesh, 2.5x2.5 mesh

15x14 mesh, 10x10 mesh, 8x8 mesh, 5x4 mesh, 3x3 mesh, 1x1 mesh and so on

2 - Weight/sq.

meter ranges: 40g—800g

3 - Each roll length: 10m, 20m, 30m, 50m—300m

4 - Roll Width: 1m—2.2m

5 - Color: White (standard) blue, green, orange, yellow and others.

6 - A wide range of specifications and different packaging according to customers' requests.

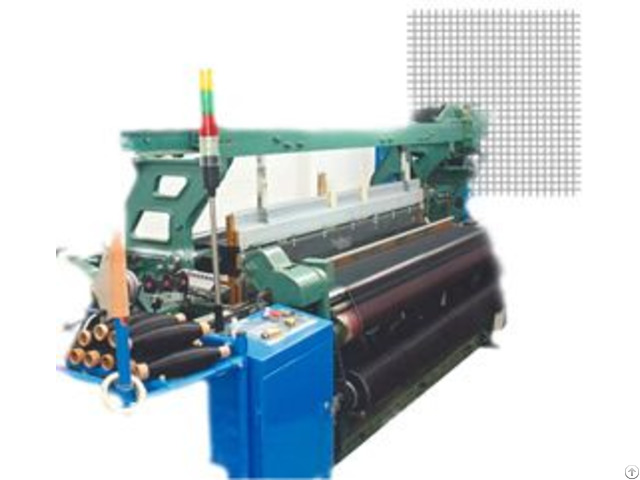

Auto Feeding Weaving Machine of Fiberglass Mesh for Building Materials: Major Index: Electric Motor: 1.5KW FOH-56-6, 2.0KW FOH-58-6, 960rotation/minuts Max.

shaft rotation: 130-200 rotation/minute Auto Feeding Fiber Yarn Weaving LoomsWeft yarn choice: mechanical control, six color Weaving shaft coil distance(mm): 1380, 1860, 2060, 2366, 2566, 2866 Weaving shaft coil diameter(mm): 550, 600 Cloth Full Rolling Diameter(mm): 400 Warp Yarn Feeding: Auto feeding Weft Yarn Feeding: Auto feeding Outside Dimension of Fiberglass Mesh Machine(mm): Width: 3875, 4180, 4380, 4680, 4880, 5180 Depth: 1857; Height: 1640 Weight of the Machine: 1600kg (motor not included) Square Mesh Fabric Weaving Looms for Window Screening and Netting Fabrics Fiberglass mesh fabric machine

Fiberglasses square mesh weaving machine produce by our factory adopt the German telchnical weaving molding elements, the capacity of the machine is high, and the quality of the mesh is better.

The machine is designed reasonable, it is controlled by computer, engine and electric are integrative, finish pulling wire, rolling mesh, overhand automatically.

The main parameter:

Outside size: Length: 2800mm width: 1800mm heigth: 2200mm

The maximal width of weaving: 2300mm

The maxiaml mesh: 60mesh( there is 60 open aeras each inch)

The maximal diameter of weaving: 2.0mm

The minimal diameter of weaving: 0.02mm

Power: 3KW/set 0.12 KW/set

Output: In theory: 1200m/24 hours

The best for the machine: 800m/24hours

Gross weight: 2.8T

Accessories parts: one set reorganize longitude machine, twine axes machine one set, line hill one set.

Company Contact:

• Posted By: Meiya Fibreglass Mesh & Machine Co

• Phone: +86-534-301397

• Address: No. 11, Chengnan road, Dezhou, Shandong, China, dezhou , shandong , China

• Email:

• Website: https://www.fiberglassmeshmachine.com

• Business Description: A pioneer in fiberglass mesh marketing, Meiya started development of fibre glass mesh plant in 1999 and currently delivers fiber glass mesh products and machinery to local Chinese companies and the world.

  Meiya help with training of staff and installation of machinery for fiberglass mesh production.

  In just a few years, Meiya has become a reference on the fiberglass mesh manufacture arena.

  Meiya delivers also fiberglass mesh products including fiberglass yarn, AR fiberglass mesh, fiberglass insect screen, ducting, sunshade, fiberglass mesh tape and etc.

  Our team has developed machinery for yarn drawing and fiberglass mesh weaving with reliable performance.

  We have constantly improved the quality index of the machine through direct communication with the users of our machines.

  Customer satisfaction is one of our major concerns; this explains our dedication to direct assistance for our importers and users and maintenance for their machines.
