Expanded Flattened Titanium Mesh - China

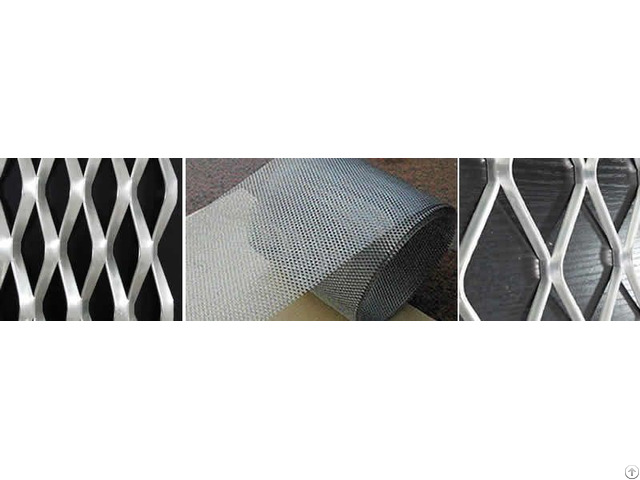

Titanium Flattened Expanded Diamond Mesh Foil Net Grill for Battery Hydrogen Electrode and Oxygen Electrode Sheet

Flattened titanium mesh is supplied in sheet metal or micro hole foils.

Titanium mesh is made from TA1 titanium foil, with a purity of over 99.6%.

The mesh sheet width can be 100 100 mm, supplied in slitted pieces or rimmed mesh foils.

The mesh thickness ranges from 0.1 to 0.25mm at allowed difference of ± 0.01 mm.

Surface density: 150 ± 10g / m.

Tensile strength is ≤5㎏.

Standard opening: 0.75 * 1.25MM.

Flattened titanium diamond mesh has smooth surface, diamond holes, no oil, non-oxidation, no broken wires, no burrs or arc shape.

Suitable for battery making, used for hydrogen electrode, oxygen electrode and super capacitors for proton exchange membrane fuel cells.

Titanium mesh is not as popular as expanded steel or aluminum, it is especially suitable for filtration in the condition of strong acid and alkali environment and electrode in the chemical industry, environmental industry, electroplating industry, battery industry.

The jointless continuity structure of expanded stretched sheet makes it a highly efficient conductor sheet of electricity, magnetic flux and heat used as battery nets.

Titanium Flattened Expanded Metal: LWO-.

325in

SWO-.

150in

Strand Thickness-.

035in

Strand Width-.

055in

SL.

No DESCRIPTION OF THE ITEM WITH SPECIFICATIONS THICKNESS PURITY SIZE

1 TITANIUM METAL FOIL 0.05 ± 0.005 MM 99.95% min 350 mmx

2 TITANIUM EXPANDED MESH 0.05 ± 0.005 MM 99.95% min 150mm width (min) roll MESH dimensions: - Length wise dim : 1.00mm; - Side wise dim : 0.070mm; Strand width : 0.2mm Strand thickness : 0.15mm Titanium Expanded Metal Battery Net( Drawing Attached )

Spec -1002

Thickness : 1.5mm

Size : 500mm X 200 mm

Company Contact:

• Posted By: Anping PuRuiSe Expanded Metal Factory

• Phone: +86-318-9638287

• Address: No.33, Lingyuan Street, Anping, China, hengshui , -- Choose state --, China

• Email:

• Website: https://www.expanded-metal.org

• Business Description: Anping PuRuiSe Expanded Metal Factory is a supplier that is dedicated to producing high quality, precision made metal products.

  PuRuiSe has been in the expanded metal business for about 10 years to offer the best solutions for your needs.

  Many metals can be expanded including aluminium, pre-galvanised mild steel, mild steel hot rolled and cold rolled, stainless steel, zintec, monel, titanium, brass and copper.

  Special precious metals can also be processed to customers requirements including gold, silver and platinum.

  Expanded metal mesh is formed from a single piece of material with no waste in the process.

  The metal material is cut and stretched while still leaving it attached at the knuckle.

  This allows it to retain its shape when cut and cannot separate or fray.

  Often cutting to shape is the only fabrication needed.

  Because of its jointless continuity, it is a highly efficient conductor of electricity, magnetic flux and heat.

  It has excellent corrosion resistance when suitably coated, and the uncut knuckles support weight and withstand stress better than jointed welds or woven materials.

  Expanded mesh can be supplied in a variety of finishes, thickness, raised or flattened.

  Flattened is smoother and does not indent soft materials if this is a consideration but is not as strong as the more robust raised mesh.

  Powder coating in your choice of colour will enhance its aesthetic appearance and add to its corrosion resistance as would plastic coating.

  We can supply in framed panels made to customers specific requirementst.
