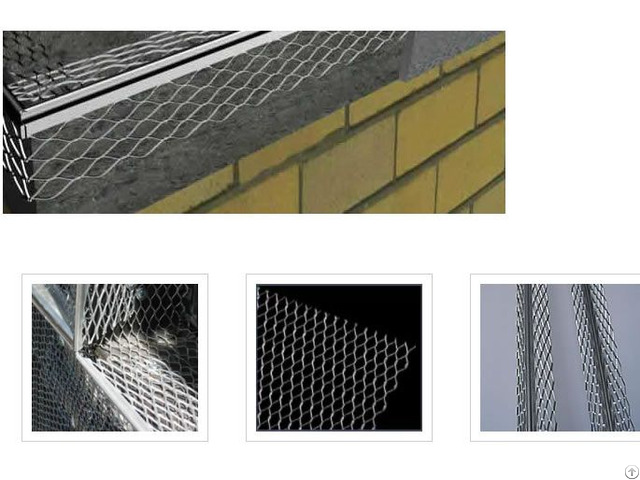

Diamond Mesh Expanded Corner Beads - China

Also known as Diamond Mesh Corner Beads or Corner Guards.

Popularly made of expanded metal sheets, it has a opening pattern of diamond / rhombic mesh.

The expanded metal flange grounds can be 3/8", 1/2", 5/8", or 3/4" (1", 1-1/8", 1-1/4" and 1-1/2".

Wide Expanded Metal Sheet Flange Beads provide additional rigidity and strength with its reinforced flanges.

Diamond mesh angle bead protector serves as a plastering stop to ensure a neat finish.

It is designed to provide strong corner reinforcement for conventional plaster applications.

A solid metal nose provides a straight, rigid ground and the 2-5/8" flanges can be easily flexed over irregular, uneven surfaces.

The expanded beads are easily installed using standard industry practice.

Plaster keys near solid nose provide reinforcement where needed most to ensure straight corners.

Yezhi offers this product in both galvanized steel and zinc plating for your choice.

Wide Expanded Metal Sheet Flange Beads are designed for use on masonry, beams, and column fireproofing.

Combination of expanded flanges and pronounced bead nose ensures successful corner alignment and efficient plaster keying from edge to nose.

This product is produced in the material of galvanized steel (zinc coating is available for special order) with full stiffening ribs to enhance durability.

Materials Options: Galvanized Steel, Aluminium, Stainless Steel, Zinc (99% pure zinc) Alloy

Wing Size: 30mm, 40mm, 50mm, 60mm, 70mm

Length: 1m-2.85m
