Coil Screw Nails Making Machine - China

Cnow supplies wire drawing machine, wire nails making machine, nails polishing machine, rolling machine and coiling devices of nails.

Generally there are five steps for coiled screw nails production:

Wire drawing for nails;

Nails making;

Polishing of nails;

Rolling of nails rolling;

Coiling of nails.

We supply related machines and devices for each steps to fulfill the production.

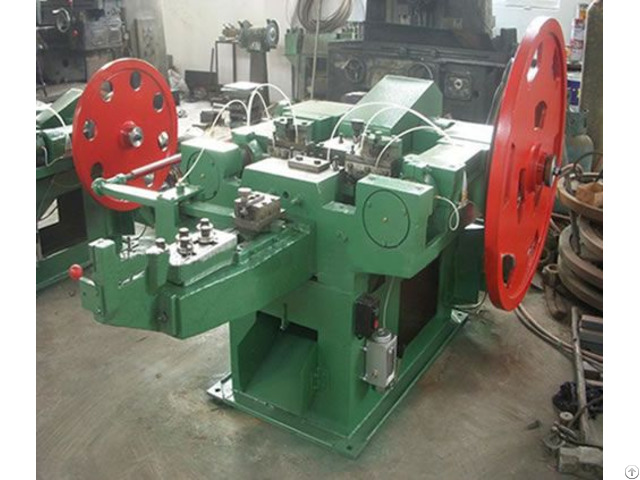

Features of Cnow coiled nails (screwed shanks) making machines:

1 .

Both iron wire and the new steel rod can be used to make nails.

2 .

This nails making machine can feed the materials automatically.

3 .

This nails machine has the features of high speed, low noise, less impact.

4 - All the main components (shaft, cams and gear) are made of quality steel.

5 - The coiled wire nails made by the machine are straight, the point of the nails will be sharp and symmetrical, the nails cap will be round, every nail will be perfect.

Parameters of Cnow Coiled Screw Nails Making machines: Technica parameters unit Z94 - 5c Z94 - 4C Z94 - 3C Z94 - 2C Z94 - 1C Max.

diameter mm 6 4.5 3.1 2.8 1.6 Min.

diameter mm 2.5 2.8 1.8 1.2 0.9 Max.

length mm 150 100 75 50 25 Min.

length mm 50 50 30 16 9 Projected output pcs / min 180 280 300 320 460 Motor power kw 5.5 4 3 2.2 1.5 weight kg 2500 2000 1800 1450 1200 Overall dimension mm 2600 * 1650 * 1750 2200 * 1600 * 1650 2000 * 1400 * 1400 1700 * 1300 * 1400 1500 * 1300 * 1200 Popular screwed coil nails specification our machine is used to produce:

Commodity: Coil Screwed Nails or coil nails with screwed shanks Nails Diameter: 2.1 mm to 3.3 mm Nails length: from 30 mm to 130 mm The degree of all coil nails: 16 degree

Pitch: The pitch is 8mm for the coil nails with diameter ranging from 2.3mm to 2.8mm.

The pitch is 6.8mm for the coil nails with diameter ranging from 2.1mm and 2.2mm Coils: About 300 nails to 400 nails in each coil Surface coating of the coiled nails: White for the half of nails and other half in yellow.
