Chain Link Conveyor Belting - China

Chain link conveyor belting consists of interwoven successive spiral wire, which looks like chain link fencing.

This universal conveyor belt is the simplest wire belt but functional and economical in conveying light-duty applications.

Owing to its large open area, chain link belt makes itself an ideal choice for drying, cooling and heating where energy efficiency is the most important.

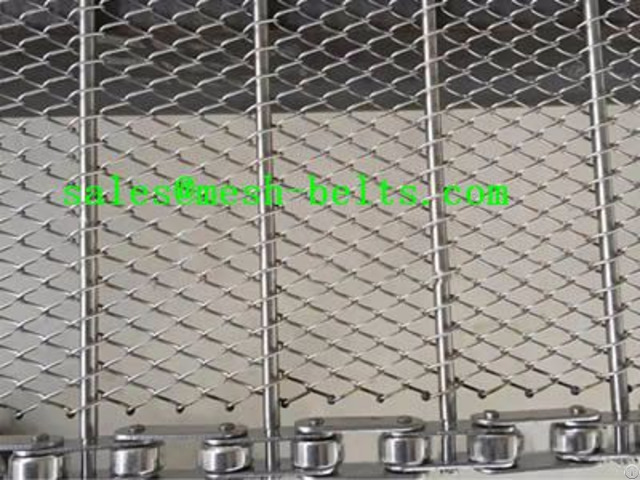

Reinforced chain link conveyor belt driven by chain.

CLCB-01: Chain link belting.

Different from balanced weave belt consisting of alternating left-hand and right-hand spiral coils chain link conveyor belting is constructed by unidirectional coils.

For a friction driven belt, the belt features alternating sections of left-hand then right-hand.

To counteract the tracking issues caused by the unidirectional coil pattern, cross rods are inserted across the belts - one is right-hand woven and the other is right-hand woven.

Features & benefits:

The most economical belt for low load conveying applications.

Large open area ideal for drying and cooling.

Supplied with welded or knuckled edge finishes.

Friction-driven belt.

Stainless steel T-304 available.

Welded or knuckled edge finish.

Typical applications:

Cooling.

Drying.

Lift guards.

Heating.

Transport light-duty products.

Industrial curtains.

Edge finish availability:

Standard chain link belt can be supplied with welded or knuckled edge finish.

Welded edge - Spiral coil wires are looped and welded together.

It is the most economical edge finish.

This kind of finish allows for relatively smooth finish.

Knuckled edge - Each coil wire is bent back into a 'U' shape and then interlock with the nearest coil.

This knuckled edge allows for great flexibility and reduces stress building up at these connecting positions.

Chain link conveyor belt with welded edge.

CLCB-02: Welded edge.

Chain link belting with knuckled edge.

CLCB-03: Knuckled edge.

Specification for standard chain link belt

Item Wire diameter Spiral coil number Belt thickness

mm mm

CLB01 2.8 84 10 ± 0.5

CLB02 2.2 100 8 ± 0.4

CLB03 1.6 69 7 ± 0.4

CLB04 1.2 100 6.5 ± 0.4

CLB05 1.1 182 6 ± 0.4

CLB06 0.9 153 6 ± 0.4

NOTE: Please contact us for special specification other than the ones in the table above.

Chain driven wire link belt for most light-duty applications.

CLCB-04: Chain driven wire link belt - the most economical metal belt for light duty transportation.

Chain link conveyor belting with cross flights separating conveyor belts into sections.

CLCB-05: Chain link conveyor belting with perforated cross flights.

Chain link conveyor belting used in electronic product industry.

CLCB-06: Chain link conveyor belting for in light duty transportation.

If you have any need to please contact us via sales@mesh-belts.

com
