Ca Temporary Fencing - China

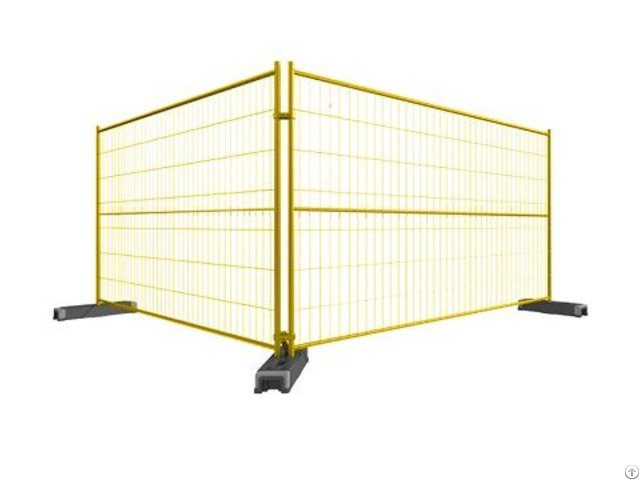

6' × 10' CA Temporary Fencing

6' × 10' CA Temporary Fencing Specifications:

Wire diameter of 6.0 mm

Frame tube size: 30 × 30 mm

Middle horizontal support pipe: 25 × 25 mm

The finished Canada welded temporary fencing is strong enough and durable for any site needing security or privacy.

Product Description :

6' × 10' CA temporary fencing owns 6' height and 10' width.

Use high quality mild steel wire and tube as raw material, after welding with high-frequency welding technology.

Plus strong corrosion treatment of electric galvanized before powder coated or hot dipped galvanized after welding.

Service life can be up to 10 years.

Besides, 6' × 10' CA temporary fencing with wire diameter of 4.0 mm, frame outside diameter of 30 × 30 mm, outside diameter of 25 × 25 mm, The finished Canada welded temporary fencing is strong enough and durable for any site needing security or privacy.

Panel Specification

Dimensions

(H × W) 6' × 10' (equal to 1.8 × 3 m).

Wire diameter 4.0, 6.0 mm optional.

Mesh opening 50 × 100, 50 × 150, 75 × 150 mm optional.

Frame O.D. × TH 30 × 30 × 2, 40 × 40 × 2 mm optional.

Frame TH 2.0–2.5 mm.

Middle horizontal pipe O.D. 25 × 25 × 2 mm.

Fence feet Specification

Dimensions

(H × W × TH) 600 × 110 × 8, 900 × 80 × 7 mm optional.

Hole size O.D. 19 mm.

Interior round steel rod/pipe 30 mm O.D. × 150 mm H.

Exterior square steel rod/pipe 30 × 30 × 150 mm.

Rod space 30 mm.

Top Clips Specification

Material Steel plate, steel solid rod, steel pipe.

Coupler top plate/pipe 110 × 40 × 8 mm.

Left round steel rod/pipe 30 mm O.D. × 150 mm H.

Right square steel rod/pipe 30 × 30 × 150 mm H.

Surface treatment Electric galvanized before powder coated.

Clamp Specification

Clamp center distance 80, 90, 100 mm optional.

Applied post O.D. 25, 28, 32, 38, 40, 42 mm optional.

Clamp TH 4 mm.

Bolt Length available 100/60/40 mm with a 10 mm and 8 mm outer diameter.

Nut 15.9 mm, 17 mm optional.

Surface Treatment Hot dipped galvanized.

Weight 0.42 kg/set.

Accessory List 2 pieces clamps with 1 bolt and 1 nut.
