Blade Razor Wire - China

Blade Razor Wire

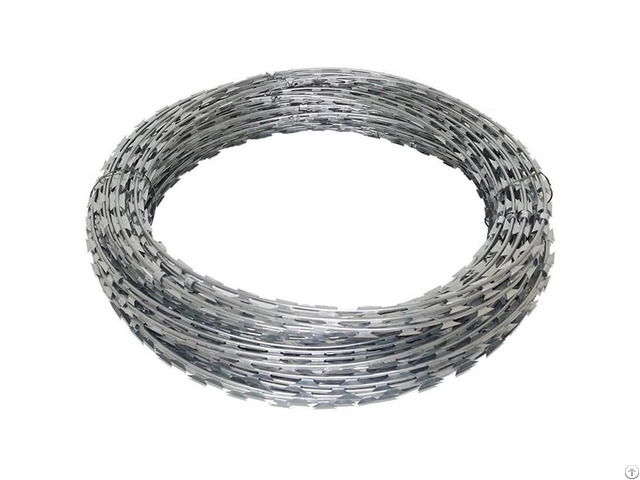

Concertina wire or Blade Razor Wire is a type of barbed wire, It is also named as concertina coils or razor type barbed wire.

It's formed in large coils which can be expanded like a concertina.

In conjunction with plain barbed wire (and/or razor wire/tape) and steel pickets, it is most often used to form military-style wire obstacles such as when used in prison barriers, detention camps or riot control.

It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets.

concertina razor wire for sale: Xin Hui Metal Products Co., Ltd. Barbed Tape Wire Specification

Loop Outside Diameter No.

Of Loops Standard Length Per Coil Type Notes

450mm 33 7-8M CBT-60.65 Single Coil

500mm 56 12-13M CBT-60.65 Single Coil

700mm 56 13-14M CBT-60.65 Single Coil

960mm 56 14-15M CBT-60.65 Single Coil

450mm 56 8-9M(3CLIPS) BTO-10.12.18.22.28.30 Cross Type

500mm 56 9-10M(3CLIPS) BTO-10.12.18.22.28.30 Cross Type

600mm 56 10-11M(3CLIPS) BTO-10.12.18.22.28.30 Cross Type

600mm 56 8-10M(5CLIPS) BTO-10.12.18.22.28.30 Cross Type

700mm 56 10-12M(5CLIPS) BTO-10.12.18.22.28.30 Cross Type

800mm 56 11-13M(5CLIPS) BTO-10.12.18.22.28.30 Cross Type

900mm 56 12-14M(5CLIPS) BTO-10.12.18.22.28.30 Cross Type

960mm 56 13-15M(5CLIPS) BTO-10.12.18.22.28.30 Cross Type

980mm 56 14-16M(5CLIPS) BTO-10.12.18.22.28.30 Cross Type Concertina Coil Specification

Coil Diameter 300mm 450mm 730mm 730mm 980mm 980mm 1250mm (12inch) (18inch) (28inch) (36inch) (36inch) (36inch) (50inch)

Recommended Stretch Length 4m 10m 15-20m 10-12m 10-15m 8m 8m

Coil Diameter When Stretched 260mm 400mm 600mm 620mm 820mm 850mm 1150mm

Spiral Turns Per Coil 33 54/55 54/55 54/55 54/55 54/55 54/55

Clips Per Spiral 3 3 3 5 5 7 9 I.

Concertina Wire Materials:

Blade: steel plate by one-time punching moulding or stainless steel plate by one-time punching moulding

Wire: hot dipped galvanized metal wire, hot dipped galvanized steel wire or stainless steel wire Concertina coils and fence types

1 - Single concertina coil

2 - Cross concertina coil

3 - Concertina wire tape

4 - Welded concertina fence
