Black Welded Wire Mesh Rolls - China

Black Welded Wire Mesh Rolls

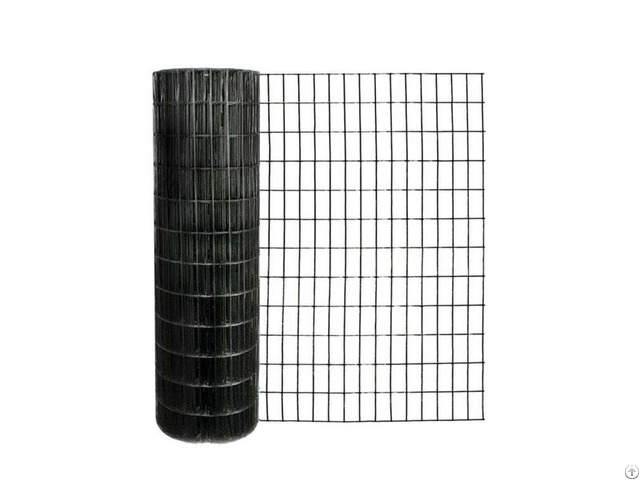

Black Welded Wire Mesh

Black welded wire mesh is made of black wire and with no galvanizing or PVC coating.

It’s a cheapest welded wire mesh.

The black welded wire mesh is also the semi-finished product for galvanized welded mesh or PVC coated welded wire mesh.

Product Features

Material: Black iron wire

Finish treatment: No finish.

The cost of black welded wire mesh is lower than the galvanized welded wire mesh.

Some black welded wire mesh are painted oil according to customer’s requirement.

Product Application

Black welded wire mesh is widely used for buildings, transportation, mining, machine guarding, poultry cage, food basket, waste basket and others.

Black anneal wire welded mesh is welded by vacuum annealed wire.

The annealed wire is a softer wire than the plain black wire This kind mesh is easy to press and forms to different needed shapes.

And taking surface treatment like, electrical galvanizing, hot deep galvanizing, PVC powder painting, Chrome plating and so on.

Specification List of Black Welded Wire Mesh

Opening Wire Diameter

In inch In metric unit(mm) 1/4" x 1/4" 6.4mm x 6.4mm 21, 22, 23, 24, 25, 26, 27

2.5/8" x 2.5/8" 7.94mmx7.94mm 20, 21, 22, 23, 24, 25, 26

3/8” x 3/8” 10.6mm x 10.6mm 19, 20, 21, 22, 23, 24, 25

1/2” x 1/2” 12.7mm x 12.7mm 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27

5/8” x 5/8” 15.875mm x 15.875mm 16, 17, 18, 19, 20, 21, 22, 23, 24, 25

3/4” x 3/4” 19.1mm x 19.1mm 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25

6/7” x 6/7” 21.8x21.8mm 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25

1" x 1/2" 25.4mm x 12.7mm 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24

1" x 1" 25.4mmX25.4mm 14, 15, 16, 17, 18, 19, 20, 21, 22, 23

1-1/4" x 1-1/4" 31.75mmx31.75mm 14, 15, 16, 17, 18, 19, 20, 21, 22, 23

1-1/2" x 1-1/2" 38mm x 38mm 13, 14, 15, 16, 17, 18, 19, 20, 21

2" x 1" 50.8mm x 25.4mm 13, 14, 15, 16, 17, 18, 19, 20, 21

2" x 2" 50.8mm x 50.8mm 12, 13, 14, 15, 16, 17, 18, 19, 20

Technical Note:

1, Standard roll length: 30m;width: 0.5m to 2.1m

2, Special sizes available at request

3, Packing: in waterproof paper in rolls.

Custom packing available at request.
