Xlpe Insulated Overhead Cable - China

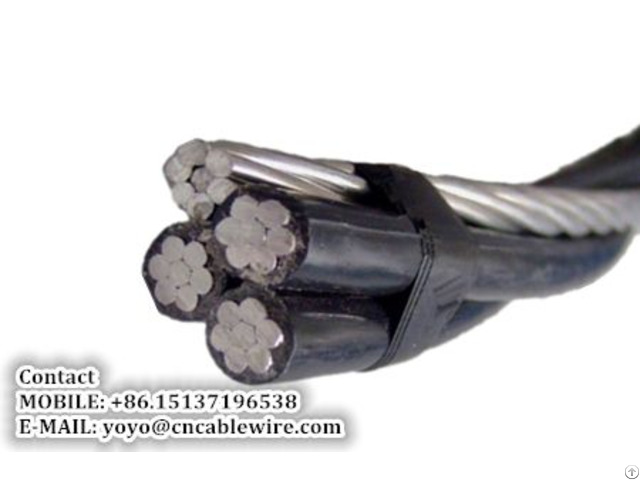

0.6/1kV XLPE Insulated Overhead Cable: Introduction of 0.6/1kV XLPE Insulated Overhead Cable: For single core XLPE insulated or covered overhead cable without messenger or neutral conductor, the phase conductor may be AAC or AAAC or ACSR or Copper.

For more than one core XLPE insulated overhead cable with or without messenger or neutral conductor and with or without street lighting conductor, the phase conductor and street lighting conductor are AAC with XLPE insulation, and the messenger or neutral conductor is AAAC or ACSR with or without XLPE insulation.

Operating Characteristics of 0.6/1kV XLPE Insulated Overhead Cable: Rated voltage: 0.6/1kV; Max.

permissible continuous operating temperature of conductor with XLPE insulation: 90°C; Max.

temperature of conductor during short-circuit (5s max.

duration) shall not exceed: 250°C; The ambient temperature under installation should not be lower than: -20°C.

The bending radius of cable is recommended as following: When the diameter of cable is less than 25mm: not less than 4 times of the diameter of cable; When the diameter of cable is not less than 25mm: not less than 6 times of the diameter of cable; When the cable is used in alternative current system, the rated voltage of cable should be at least equal to the rated voltage of system; when the cable is used in direct current system, the rated voltage of system should not greater than 1.5 times of the rated voltage of the cable.

Application of 0.6/1kV XLPE Insulated Overhead Cable: XLPE insulated overhead cable as a new-type overhead cable is used for overhead electric power transmission, extensively used in rebuilding of urban and forest region electrified wire netting.

It improves the safety and reliance of electrified wire netting.

Manufacturing Standard of 0.6/1kV XLPE Insulated Overhead Cable: GB/T 12527-2008, IEC 60502-1, NF C 33-209, BS 7870-5; Introduction of our company: Gongyi Shengzhou Metal Products Trading Co., Ltd. is a professional China Wire and Cable Manufacturers, mainly supply Aerial bundled cable, House Electric Wire, Insulated Overhead Cable, Aluminium Conductor Steel Reinforced, PVC Control Cables, XLPE Power Cables, BV Electric Wires, Nylon Sheathed Cable, Buried Cable, High Voltage Cable, House Electric Wire, Single Core Flexible Copper Cable, Civil Wire And Cable etc.

series of wire and cable products, sincerely welcome everyone to visit.
