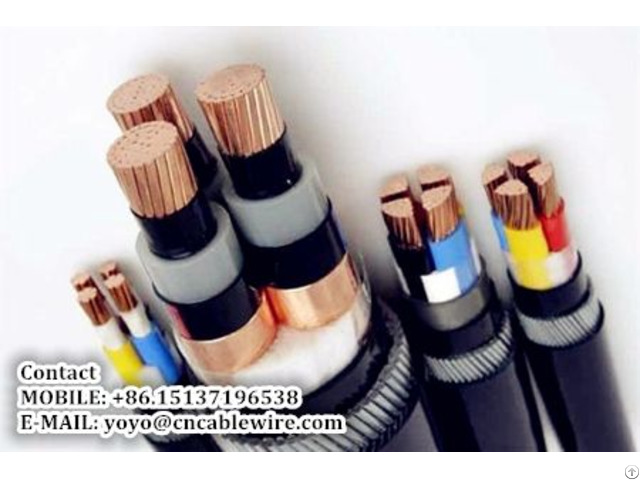

Shengzhou Metal 0 6 1kv Copper Xlpe Power Cable With Steel Wire Armour - China

0.6/1KV Copper XLPE Power Cable With Steel Wire Armour： Operating Characteristic of 0.6/1KV Copper XLPE Power Cable： Rated voltage: 0.6/1(1.2)kV; Max.

permissible continuous operating temperature of conductor: 90 °C; Max.

temperature of conductor during short-circuit (5s max.

duration) shall not exceed: 250 °C; The ambient temperature under installation should not be lower than: 0 °C.

The bending radius of cable is recommended as following: For single core cable: not less than 15 times of the diameter of cable； For multi-core cable: not less than 12 times of the diameter of cable； When the armoured single core cable used for Alternative Current(AC) system, the armour material should be non-magnetic.

Application of 0.6/1KV Copper XLPE Power Cable： The cable is used for fixed installations such as electric power distribution networks or industrial installations, which is laid in high fall area, able to bear external mechanical force, and certain pulling force.

Manufacturing Standard of 0.6/1KV Copper XLPE Power Cable： GB/T 12706-2008, IEC 60502-1； Introduction of our company： Gongyi Shengzhou Metal Products Trading Co., Ltd. is a professional China Wire and Cable Manufacturers, mainly supply Aerial bundled cable, House Electric Wire, Insulated Overhead Cable, Aluminium Conductor Steel Reinforced, PVC Control Cables, XLPE Power Cables, BV Electric Wires, Nylon Sheathed Cable, Buried Cable, High Voltage Cable, House Electric Wire, Single Core Flexible Copper Cable, Civil Wire And Cable etc.

series of wire and cable products, sincerely welcome everyone to visit.
