Rvv Cable Gongyi Shengzhou Metal - China
price: contact company for price

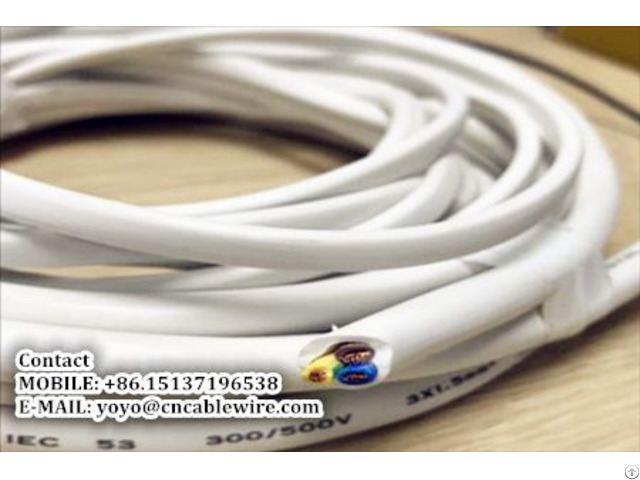

RVV Cable Description 1 - Operating temperature：70℃ 2 - Rated voltage：300/300V, 300/500V 3 - Standard：GB/T5023, IEC60227-5 4 - Model：227IEC50&53 (RVV), H03VV-F/ H05VV-F 5 - PVC or flame retardant colour-coded PVC insulation 6 - PVC or flame retardant PVC jacket Application It’s used for light or medium size home appliances, instrument& meters and power-driven lighting.
Technical specification Cross-sectional Area No.
& diameter of wire Reference overall diameter Reference weight Min.
insulation resistance at 70℃
mm2 N/mm mm Kg/km MΩ.
km
60227IEC52 (RVV)
2x0.5 17/0.19 5.7 46 0.012
2x0.75 26/0.19 6.10 55 0.010
3x0.5 17/0.19 6.20 57 0.012
3x0.75 26/0.19 6.65 66 0.010
60227IEC53 (RVV)
2x0.75 26/0.19 6.7 59 0.011
2x1.0 35/0.19 7.1 68 0.010
2x1.5 30/0.25 8.1 92 0.010
2x2.5 50/0.25 10.0 134 0.009
2x4.0 80/0.25 10.8 191 0.007
3x0.75 26/0.19 7.1 70 0.011
3x1.0 35/0.19 7.6 82 0.010
3x1.5 30/0.25 8.9 110 0.010
3x2.5 50/0.25 10.6 168 0.009
3x4.0 80/0.25 11.7 240 0.007 Introduction of our company Gongyi Shengzhou Metal Products Trading Co., Ltd. is a professional China Wire and Cable Manufacturers, mainly supply Aerial bundled cable, House Electric Wire, Insulated Overhead Cable, Aluminium Conductor Steel Reinforced, PVC Control Cables, XLPE Power Cables, BV Electric Wires, Nylon Sheathed Cable, Buried Cable, High Voltage Cable, House Electric Wire, Single Core Flexible Copper Cable, Civil Wire And Cable etc.
series of wire and cable products, sincerely welcome everyone to visit.
Company Contact:
- Phone: 86.371.60266515
- Address: NO.60, North Baiyun Road, Didong Industrial Zone, Zhengzhou , China , China
- Email:
- Website: http://www.cncablewire.com/
