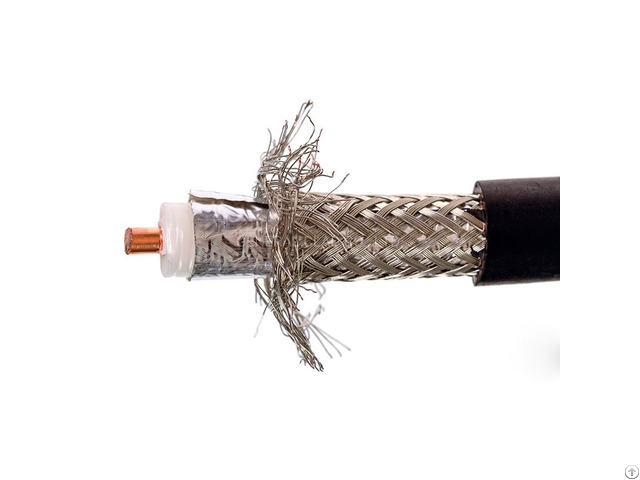

Rg 6 Type Satellite Coaxial Cable - China
price: 0.08 Dollar US$
General Specifications
Cable Type: Series 6
Center Conductor Type: Solid Construction Type: Non-armored Dimensions
Cable Length: 304.8 m | 1000 ft
Diameter Over Center Conductor Tolerance: ±0.0004 in
Diameter Over Center Conductor, specific: 0.0403 in per 1 strand
Diameter Over Dielectric: 4.318 mm | 0.17 in
Diameter Over Jacket Tolerance: ±0.006 in
Diameter Over Jacket, nominal: 6.02 mm | 0.237 in
Diameter Over Shield (Braid): 5.207 mm | 0.205 in
Jacket Thickness: 0.381 mm | 0.015 in
Jacket Thickness, minimum spot: 0.254 mm | 0.01 in
Center Conductor Gauge: 18 AWG
Shield (Braid) Gauge: 34 AWG Electrical Specifications
Capacitance: 50.853 pF/m | 15.5 pF/ft
Characteristic Impedance: 75 ohm
Characteristic Impedance Tolerance： ±3 ohm
Conductor dc Resistance：28.6 ohms/kft | 93.832 ohms/km
Dielectric Strength, conductor to shield：2500 Vdc
Jacket Spark Test Voltage：2500 Vac
Nominal Velocity of Propagation (NVP)：84 %
Shield dc Resistance：6.4 ohms/kft | 20.997 ohms/km
Structural Return Loss：15 dB @ 1000-3000 MHz | 20 dB @ 5-1000 MHz
Structural Return Loss Test Method：100% Swept Tested Material Specifications
Center Conductor Material： Copper-clad steel wire
Dielectric Material： Foam FEP
Jacket Material： PVC
Shield (Braid) Coverage ：90 %
Shield (Braid) Material ：Aluminum
Shield (Tape) Material ：Aluminum/Poly, bonded
Company Contact:
- Posted By: GENERAL CLAD CO.,LTD
- Phone: 86-575-85550857
- Address: JINGTANG ROAD, XUANCHENG CITY ANHUI PROVINCE P.R.CHINA, P.R.CHINA , China
- Email:
- Website: https://generalclad.com
Published date: January 18, 2021
- Business Description: General Clad is a technology driven company specialized in developing and producing bimetallic material such as copper clad steel (CCS), copper clad aluminum (CCA) and Aluminum Clad Steel (ACS) as well as CCS fine wire (CCSF) Ability to develop multilayer bimetallic materials.
With it′s production site in China and two sales office for EU and American market, General Clad is offering it s bimetallic material for clients from more than 20 countries in the world every year.
