Quadruplex Service Drop Abc Cable - China
price: contact company for price
Quadruplex Service Drop ABC Cable: Application of Quadruplex Service Drop ABC Cable:
ABC cable is a new type of power transmission overhead cable, which is widely used in overhead power transmission lines, improving the security and reliability of the electrified network.

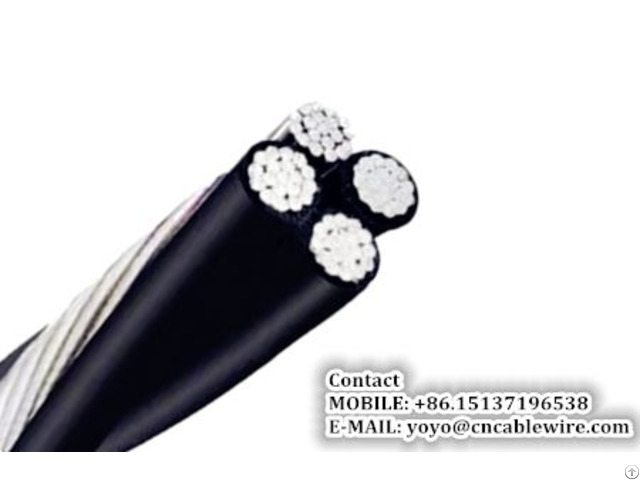

Construction of Quadruplex Service Drop ABC Cable:
The conductors are made of compressed 1350-H19 aluminium strands, the insulating material is polyethylene or crosslinked polyethylene.
The neutral messengers are concentrically stranded 6201 series aluminum twisted aluminum(AAC) or steel-cored aluminum stranded wire(ACSR).
ABC Technical Characters Based on Standard:
ASTM ANSI/ICEA S-76-474 and NFC 33-209 The Specification of Quadruplex Service Drop ABC Cable: Code word AWG or kcmil Bare Neutral
Messenger Phase Conductor
Code word Weight
(kg/km)
AAC Rated strength
(1bs) AAC Insulation
Thick.
(mm)
Stranding and
Wires Dia.
(mm) Stranding and
Wires Dia.
(mm)
Clydesdatc 3x4AWG+1x4AWG 7/1.96 881 1/5.19 1.14 299
Pinto 3x4AWG+1x4AWG 7/1.96 881 7/1.96 1.14 306
Mustang 3x2AWG+1x2AWG 7/2.47 1320 7/2.47 1.14 461
Criollo 3x1/0AWG+1x1/0AWG 7/3.12 1990 19/1.89 1.52 744
Percheron 3x2/0AWG+1x2/0AWG 7/3.50 2510 19/2.13 1.52 914
Hanoverian 3x3/0AWG+1x3/0AWG 19/2.39 3310 19/2.39 1.52 1127 Introduction of our company:
Gongyi Shengzhou Metal Products Trading Co., Ltd. is a professional China Wire and Cable Manufacturers, mainly supply Aerial bundled cable, House Electric Wire, Insulated Overhead Cable, Aluminium Conductor Steel Reinforced, PVC Control Cables, XLPE Power Cables, BV Electric Wires, Nylon Sheathed Cable, Buried Cable, High Voltage Cable, House Electric Wire, Single Core Flexible Copper Cable, Civil Wire And Cable etc.
series of wire and cable products, sincerely welcome everyone to visit.
