Nyy Cables - China
price: 0.10 Dollar US$

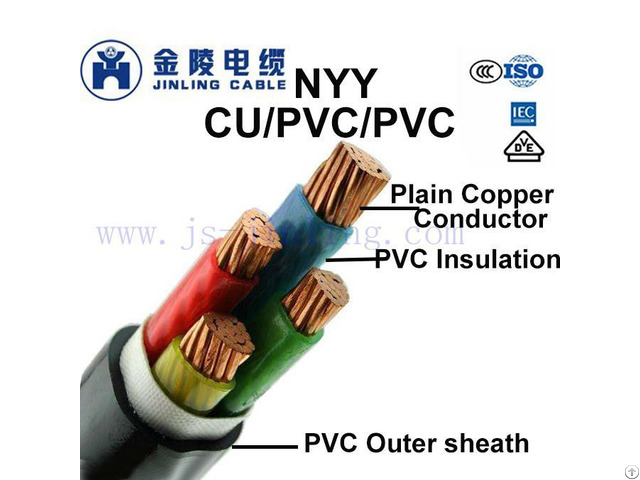

NYY Low Votage PVC Insulted Electric AC DC Power Cable Construction: Bare Copper Conductor, PVC Insulation, PVC Sheathed NYY Low Votage PVC Insulted Electric AC DC Power Cable Application: These cables are used for electricity supply in low voltage installation system, they are suitable for installation in indoors and outdoors, in cable ducts, underground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.
NYY Low Votage PVC Insulted Electric AC DC Power Cable Special Features on Request • Fire Resistance • Oil Resistance • UV Resistance • Flame Retardant Cat.
A, B, C • Flame Retardant Non Category • Heat Resistance • Anti Termite • Anti Rodent • Low Smoke Zero Halogen NYY Low Votage PVC Insulted Electric AC DC Power Cable Standard Packing: • 1.5 - 10 mm2 supplied in coil at 100 meters • 16 - 300 mm2 supplied in wooden drum at 1000 meters • 400 - 500 mm2 supplied in wooden drum on available length NYY Low Votage PVC Insulted Electric AC DC Power Cable Technical Data: Conductor: solid Conductor, Class 1 or Strand Conductor, Class 2 Operating Voltage: 0.6/1KV Test Voltage: 4000V Working Temperature: -5-70 º C Short-circuit max.
Conductor temperature: 160°C Insulation resistance: 20 MΩ x km
Cable Parameter:
Single core : Nominal Cross
Section Overall Diameter
(Approx.
) Cable Weight approx.
mm² mm kg/km
1x1.5 6 53
1x2.5 6.4 67
1x4 7.1 94
1x6 7.6 117
1x10 8.4 166
1x16 9.3 229
1x25 10.8 345
1x35 11.9 444
1x50 13.6 600
1x70 15.1 815
1x95 17.2 1079
1x120 18.7 1325
1x150 20.6 1604
1x185 22.7 2020
1x240 25.4 2636
1x300 28 3219
1x400 31.7 4087
1x500 35 5213
1x630 38.3 6712
1x800 42.7 8368
Company Contact:
- Posted By: Jiangsu Jinling Special Cable Co.,LTD
- Phone: 86-1-55-9908 8972
- Address: NO.1 Jinghua road, Nanjing , Asr , China
- Email:
- Website: http://www.js-jinling.com
Published date: October 28, 2018
- Business Description: (power cable/ electric cable)Low and Middle voltage wire & cables PVC/PE/XLPE/Low Smoke halogen-free(HFFR, FRLS) CU/AL cables
Dear manager,
We are professional manufacturer of Low and Middle voltage wire & cables in china.
We are wonder that do you need any cables? If yes, please kind tell us your detail requirement.
If no, we are very sorry to disturb you, hope your business move smoothly.
Waiting for your news.
Thanks
