Buried Cable - China

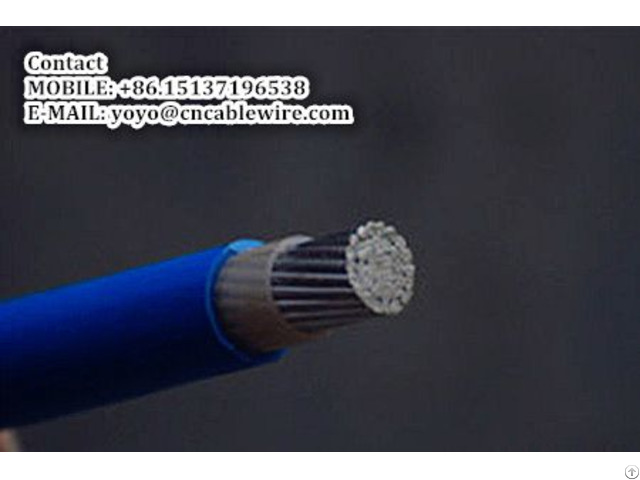

Buried Cable: Introduction of Buried Cable: NLVV agricultural buried wire is a kind of widely used in the field wild buried type of wire.

Usually use aluminium as conductor, polyethylene insulated, PVC sheathed.

The product of low cost, wide range of USES, the line buried in the ground, at ordinary times is not easy to be damaged, also can prevent fire welding random hook, etc in the overhead lines on the road, greatly improving the rural power supply management.

Advantage of Buried Cable: 1 - Compared with line, buried lines without pole, porcelain insulator, cross arm, pull, etc., therefore can save a lot of steel and cement.

2 - Use the overhead line, those criss-cross distribution of a wide range of telegraph poles, bring great inconvenience to farming, a rough estimate, each a fundamental electric pole, and will affect the penny of farming.

Replaced by buried lines, will occupy farmland, less easy cultivation, but also solve the conflict between transmission and planting trees.

3 - When choosing overhead line conductors, due to consider its mechanical strength, should not be commonly use LGJ - 10 or LJ - 16 the following section of conductor, however buried in the ground and ground line, don't inherit the wire tension resulting from itself weight, so the wire section can choose only according to the size of the power load, can have more opportunity to use more than overhead line thin wires.

4 - Due to the lines buried in the ground, not easily affected by the storm, snow, ice and other natural disasters, there is no overhead line common pole, break the accidents such as;While eliminating the power line and telephone line, TV closed route, GuangBoXian cross across the contradiction, not easy also happen personal casualty accident getting an electric shock, even break ground line leakage, reflected in the step on the ground is also very small (less than 2 V), to further ensure the safety of people's lives and property.

Standard: JB/T2171-1999; Application of Buried Cable: This product is directly buried for rural underground laying.

Connected to the AC rated voltage U0 / U for the 450 / 750V and below fixed distribution lines and electrical equipment and other places to use (referred to as agricultural Buried line).

Characteristic of Buried Cable: (1) Wires rated voltage U0 / U for 450/750 v; (2) The long-term working temperature of the wire should not exceed 70 ℃; (3) Wire laying installation of the ambient temperature should not be less than 0 ℃, allowing bending radius: conductive core cross-section of 35mm2 and below the wire should not be less than 6D.

The cross-section of conductor is 50mm2 and above the wire should not be less than 8D (D-wire diameter); (4) The laying depth of the wire should be greater than 0.8m.

The wire should be laid in the permafrost below where permafrost depth of the place greater than 0.8m.

Introduction of our company: Gongyi Shengzhou Metal Products Trading Co., Ltd. is a professional China Wire and Cable Manufacturers, mainly supply Aerial bundled cable, House Electric Wire, Insulated Overhead Cable, Aluminium Conductor Steel Reinforced, PVC Control Cables, XLPE Power Cables, BV Electric Wires, Nylon Sheathed Cable, Buried Cable, High Voltage Cable, House Electric Wire, Single Core Flexible Copper Cable, Civil Wire And Cable etc.

series of wire and cable products, sincerely welcome everyone to visit.
