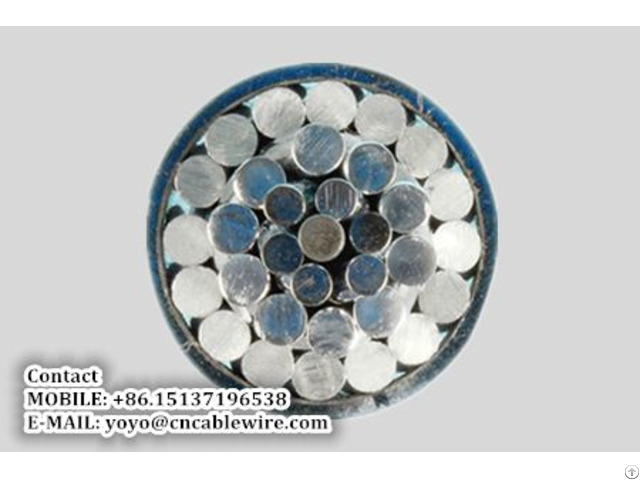

ACSR 95/15 Introduction Aluminium Conductor Steel Reinforced is a type of high-capacity, high-strength stranded conductor typically used in overhead power lines.

The outer strands are high-purityaluminium, chosen for its excellent conductivity, low weight and low cost.

The center strand, or strands is/are of steel for additional strength to help support the weight of the conductor.

Steel is higher strength than aluminium which allows for increased mechanical tension to be applied on the conductor.

Steel also has lower elastic and inelastic deformation (permanent elongation) due to mechanical loading (e.g. wind and ice) as well as a lower coefficient of thermal expansion under current loading.

These properties allow ACSR to sag significantly less than all-aluminium conductors.

Standards implemented This product is the implementation of GB / T1179-2008 standards, GB / T1179-2008 is the same as IEC207, IEC209 - Using features The product is used in the field of overhead power line.

Technical specification of ACSR 95/15 mm2 ACSR 95/15 mm2 Standard GB/T 1179-83

Area of aluminum 94.4 mm2

Area of steel 15.3 mm2

Total area 109.7 mm2

Overall diameter 13.6 mm

Total weight of conductor 380.8 kg/km

Nominal breaking load 35.0 kN

Stranding & Diameter of wire

Aluminum (26 strand) 26/2.15 No/mm

Steel (7 Strand) 7/1.67 No/mm

DC resistance at 20 ℃ 0.3058 Ohm/km

Current carrying capacity (70 ℃) 252 A Introduction of our company Gongyi Shengzhou Metal Products Trading Co., Ltd. is a professional China Wire and Cable Manufacturers, mainly supply Aerial bundled cable, House Electric Wire, Insulated Overhead Cable, Aluminium Conductor Steel Reinforced, PVC Control Cables, XLPE Power Cables, BV Electric Wires, Nylon Sheathed Cable, Buried Cable, High Voltage Cable, House Electric Wire, Single Core Flexible Copper Cable, Civil Wire And Cable etc.

series of wire and cable products, sincerely welcome everyone to visit.
