Acsr 150 25 - China
price: contact company for price

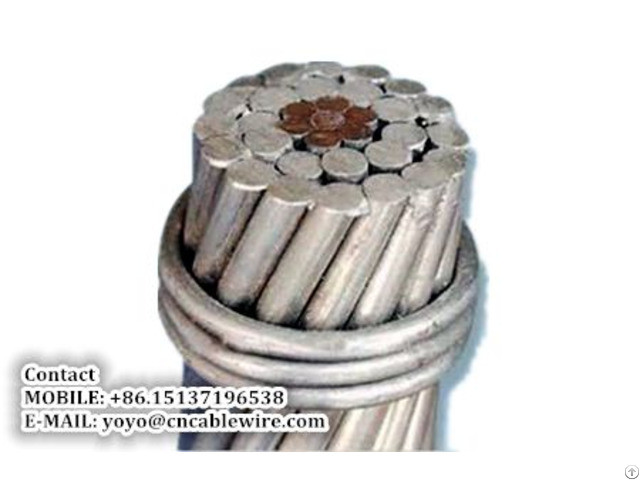

ACSR 150/25 Standard of ACSR 150/25 mm2 This product can press GB1179-83, GB/T1179-1999 and Q/SX107-2001 standard and American standard ASTM - B231 manufacturing.
The product is suitable for fixed installation transmission power line.
Rare earth products conductive performance is good, strong anti-corrosion, acid resistance, is suitable for humid coastal areas.
Use Features of ACSR 150/25 mm2 The product is used in the field of overhead power line.
1 - ACSR maximum allowable working temperature does not exceed 80 ℃.
2 - Laying temperature should not be less than -20 ℃.
3 - The wire allows bending radius of 12 times the cable diameter.
Technical specification of ACSR 150/25 mm2 ACSR 150/25 mm2 Standard GB/T 1179-83
Area of aluminum 148.9 mm2
Area of steel 24.3 mm2
Total area 173.1 mm2
Overall diameter 17.1 mm2
Total weight of conductor 601 kg/km
Nominal breaking load 54.1 kN
Stranding & Diameter of wire
Aluminum 26/2.7 No/mm
Steel 7/2.1 No/mm
DC resistance at 20 ℃ 0.194 Ohm/km
Current carrying capacity (70 ℃) 331 A Introduction of our company Gongyi Shengzhou Metal Products Trading Co., Ltd. is a professional China Wire and Cable Manufacturers, mainly supply Aerial bundled cable, House Electric Wire, Insulated Overhead Cable, Aluminium Conductor Steel Reinforced, PVC Control Cables, XLPE Power Cables, BV Electric Wires, Nylon Sheathed Cable, Buried Cable, High Voltage Cable, House Electric Wire, Single Core Flexible Copper Cable, Civil Wire And Cable etc.
series of wire and cable products, sincerely welcome everyone to visit.
