Corning Adss Fiber Optic Cable 48 Strand Reinforced Plastic - China

Description: ADSS cable is made of non-metallic material and self-supporting with the aerial power transmission line.

The tension resistance material is aramid yarn with high elasticity modules.

And optimizing structure can deploy the weight of the cable and its mechanical and physical properties appropriately and minimize the load on the tower.

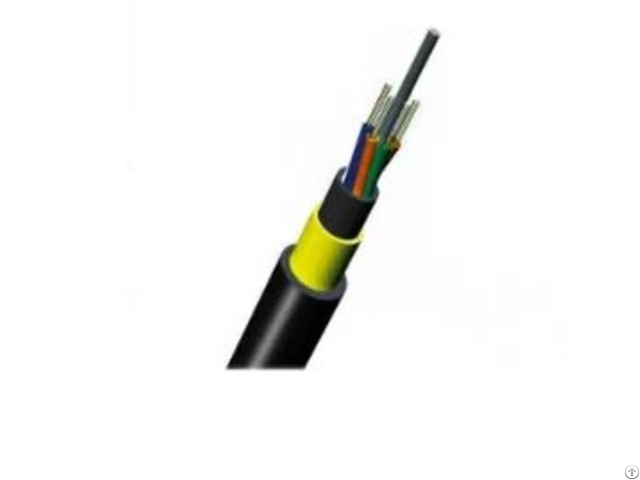

Loose tube construction, tubes jelly filled, elements (tubes and filler rods) and water blocking yarn laid up around non-metallic central strength member, polyester yarns used to bind the cable core, water blocking tape longitudinally wrapped around the cable core, thenaramid yarn reinforced and PE outer sheath.

Cable Mechanical characteristic core Cable diameter weight

2 core to 60core 12±0.5mm 140±5kg/km

72core 13±0.5mm 190±5kg/km

96core 14.5±0.5mm 220±5kg/km

144core 16.5±0.5mm 240±10kg/km

Rec.

daily max working tension 88kn

Max.

Allowable working tension 32.7kn

Modulus of elasticity 37kn/mm2

Min Bending Radius(mm) operation 240mm

installation 390mm

Extra load Extra load 0.5%-0.7%

Ice 5mm

Wind speed 35m/s Corning ADSS Fiber Optic Cable 48 Strand Fiber Reinforced Plastic 0
