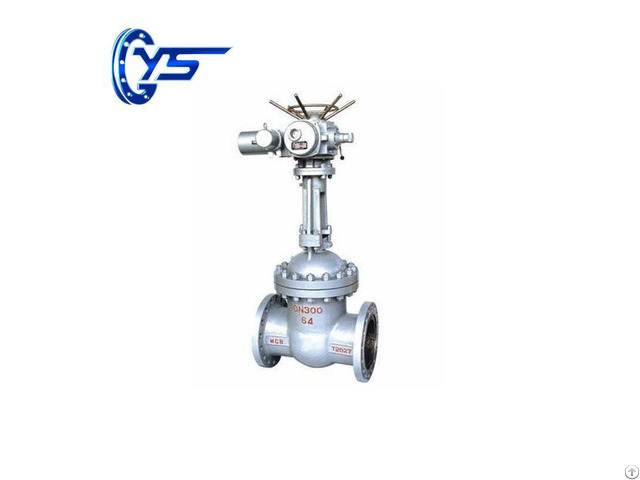

Z941h 16c 25 Dn 50 1000mm Cast Steel Electric Gate Valve - China

Z941H-16C / 25 DN 50-1000mm cast steel electric gate valve Brass Gate Valve for sale

Material: WCB

Medium temperature: -29-425 ℃

Operation mode: electric

Medium: water, steam, oil, etc.

Caliber: DN50-1000

Valve Type: Gate Valve

Connection method: flange / welding

Body material: WCB

Working pressure: 1.6-6.4Mpa

This product is suitable for all kinds of pipes that are fully open and fully closed, not for throttling.

GOST SERIES Details

Outer dimensions and connection dimensions of cast steel electric gate valves

model Nominal diameter

(mm) Size (mm) L D D1 D2 bf z-φd H

Z941H-16C 50 250 160 125 100 16-3 4 * Φ18 310 65 265 180 145 120 18-3 4 * Φ18 373 80 280 195 160 135 20-3 8 * Φ18 435 100 300 215 180 155 20-3 8 * Φ18 445 125 325 245 210 185 22-3 8 * Φ18 570 150 350 280 240 210 24-3 8 * Φ23 630 200 400 335 295 265 26-3 12 * Φ23 735 250 450 405 355 320 30-3 12 * Φ25 969 300 500 460 410 375 30-4 12 * Φ25 976 350 550 520 470 435 34-4 16 * Φ25 1120 400 600 580 525 485 36-4 16 * Φ30 1452 450 650 640 585 545 40-4 20 * Φ30 1541 500 700 705 650 608 44-4 20 * Φ34 1880 600 800 840 770 718 48-5 20 * Φ36 1874 700 900 910 840 788 50-5 24 * Φ41 2083 800 1000 1020 950 898 52-5 24 * Φ41 2400 900 1100 1120 1050 998 54-5 28 * Φ41 2950 1000 1200 1255 1170 1110 56-5 28 * Φ48 3245 Material of main parts of cast steel electric gate valve

Part Name material

Body / bonnet WCB

gate WCB

Valve stem WCB / 2cr13

Stem nut Ductile iron / brass Performance specifications of cast steel electric gate valve

model Nominal pressure

(mpa) Test pressure (mpa) proper temperature Applicable medium Strength (water) Sealed (water) Z941H-16C 1.6 2.4 1.76 —29—425 ° C Water, steam, oil, etc.

Z941H-25C 2.5 3.8 2.8 Tips:

1 - Compact structure, reasonable design, good valve rigidity, smooth passage.

2 - The use of flexible graphite packing, reliable sealing, light and flexible operation

industrial gate valve Applications:

Industrial applications: Petroleum, Chemical, Paper Making, Fertilizer, Coal Mining, Water treatment and etc.

slurry gate knife gate valve Advantages:

1 - We have Sand or Precision casting technology, So we can as your drawing design and production.

2 - Customers' logos are available cast on the valve body.

3 - All our casting with tempering procedure before Processing.

4 - Use the CNC lathe during whole process.

5 - The disc sealing surface use plasma welding machine welding.

6 - Every valve must be tested before delivery from the factory, only qualified ones can be shipped.

7 - The kind valve we usually use Wooden cases to package, We also can according to specific customer's requests.

Company Advantages:

1 - We are manufacturer Since 1992.

2 - CE, API, ISO approved.

3 - Fast delivery.

4 - Low price with high quality.

5 - Professional work Team! We can design and produce various standard Valve.

Standards such as GB, JB, US API, ANSI, British BS, German DIN, Japanese JIS, GOST, GOST series Valve are our main products.
