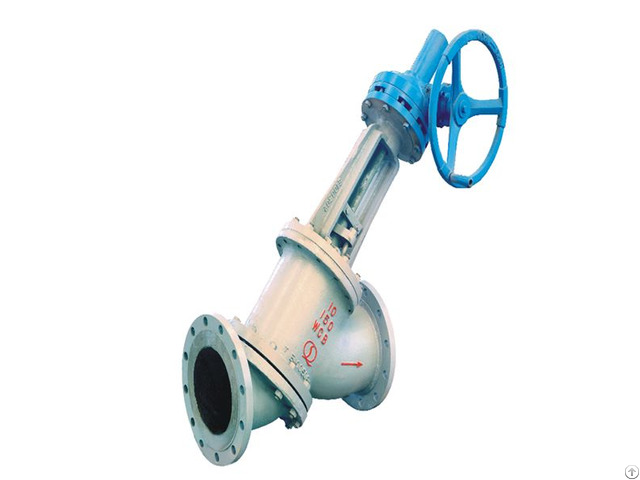

Y Type Globe Slurry Valve - China
price: 100.00 Dollar US$
Featuring abrasion resistance, high pressure resistance, erosion resistance and anti-scaling performance, the slurry valve is specially offered for controlling or shutting off the slurry.
The slurry valves are widely used at alumina, steel, metallurgy and mining industry.
Features
1 - The valve body of y type globe valve for alumina slurry control is consisted of two pieces.
The left and right valve bodies are provided in geometric design.
Besides the solidworks software for three -dimensional design, the ANSYS software is also applied for flow field analysis.
2 - The valve seat of y type slurry valve is separated from the valve body.
The valve seat is installed between the two valve body, so the valve seat can be replaced easily .
3 - To ensure the valve stem has straight line motions, there is an anti-rotation device provided for the valve stem of the y type slurry valve .
4 - Low pressure drop .
5 - The range of product is anti-scaling, which are widely use in alumina process.
Technical Specifications
Size：2”~14” DN50~DN350
Pressure ：Class 150~Class 600 PN1.0~PN16
Body material：WCB, CF8, CF8M, CF3, CF3M etc
Connection type : Flange, weld Driving method: Manual, Electric, Pneumatic Applications
Alumina industry Polymer Industry
Chemical industry
Steel industry
Nonferrous metal industry
Company Contact:
- Phone: +86-18003823620
- Address: No.28 , Huagong Road, Zhengzhou , Henan , China
- Email:
- Website: http://www.qslk.cn
Published date: February 27, 2019 - Modified date: March 25, 2019
- Business Description: Henan Quanshun Flow Control Science & Technology Co., Ltd is a special high-tech enterprise engaged in manufacturing flow control equipment including: semi-ball valve , rotating ball valve , ball valve, control valve, butterfly valve, gate valve, check valve and others.
Our equipment can be used in poor working condition with strict requirement on corrosion resistance, abrasion resistance and erosion resistance of the product.
Our Products:
- bidirectional rotary ball valve
- eccentric semi ball valve
- ball segment valve
- slurry valve
- dumping valve
